Modern networks face continuous threats from malware, credential theft, exploitation attempts, reconnaissance, lateral movement, command-and-control activity, and unauthorized access. Firewalls and access-control systems provide essential protection, but organizations also need technologies capable of inspecting activity and identifying behavior that may indicate an attack.
This is where Intrusion Detection Systems (IDS) and Intrusion Prevention Systems (IPS) become important.
An IDS monitors and analyzes network or host activity to identify potential security incidents. An IPS performs similar detection but can also take action to block or disrupt malicious traffic.
Together, these technologies are commonly discussed as Intrusion Detection and Prevention Systems (IDPS). The NIST Guide to Intrusion Detection and Prevention Systems covers network-based, wireless, host-based, and network-behavior analysis approaches.
IDS/IPS should not be viewed in isolation. They operate alongside technologies such as firewalls, endpoint protection, Network Access Control, SIEM, and segmentation. If you are building your networking foundation first, the CorgiNetwork guide to computer networking fundamentals explains how the underlying network infrastructure works.
This guide explains how IDS and IPS work, their major types, detection techniques, network intrusion detection, enterprise deployment architectures, signatures, false positives, SIEM integration, troubleshooting, and practical security considerations.
An Intrusion Detection System (IDS) is a security technology that monitors events occurring on networks or hosts and analyzes them for indications of attacks, policy violations, or suspicious activity.
The primary purpose of an IDS is detection and visibility.
A typical IDS can:
Unlike an inline IPS, a traditional passive IDS normally does not sit directly in the traffic path.
Internet
|
v
+-------------+
| Firewall |
+-------------+
|
v
+-------------+
| Switch |
+-------------+
| |
| |
v v
Servers Workstations
^
|
SPAN / TAP
|
v
+-------------+
| IDS |
+-------------+
|
v
AlertsThe IDS observes traffic and generates alerts when activity matches configured detection logic.
This complements rather than replaces the access-control role described in our Firewalls Explained guide.
An Intrusion Prevention System (IPS) is an intrusion-detection technology capable of actively responding to detected threats.
Instead of merely generating an alert, an IPS may:
The important architectural difference is that a network IPS is normally deployed inline.
Internet
|
v
+---------+
| Firewall|
+---------+
|
v
+---------+
| IPS |
+---------+
|
v
+---------+
| Switch |
+---------+
|
+---- Servers
|
+---- ClientsBecause the IPS is in the traffic path, it can make enforcement decisions before traffic reaches the protected network.
This also creates an important engineering consideration: an inline IPS must be designed for sufficient throughput, latency, availability, and failure handling.

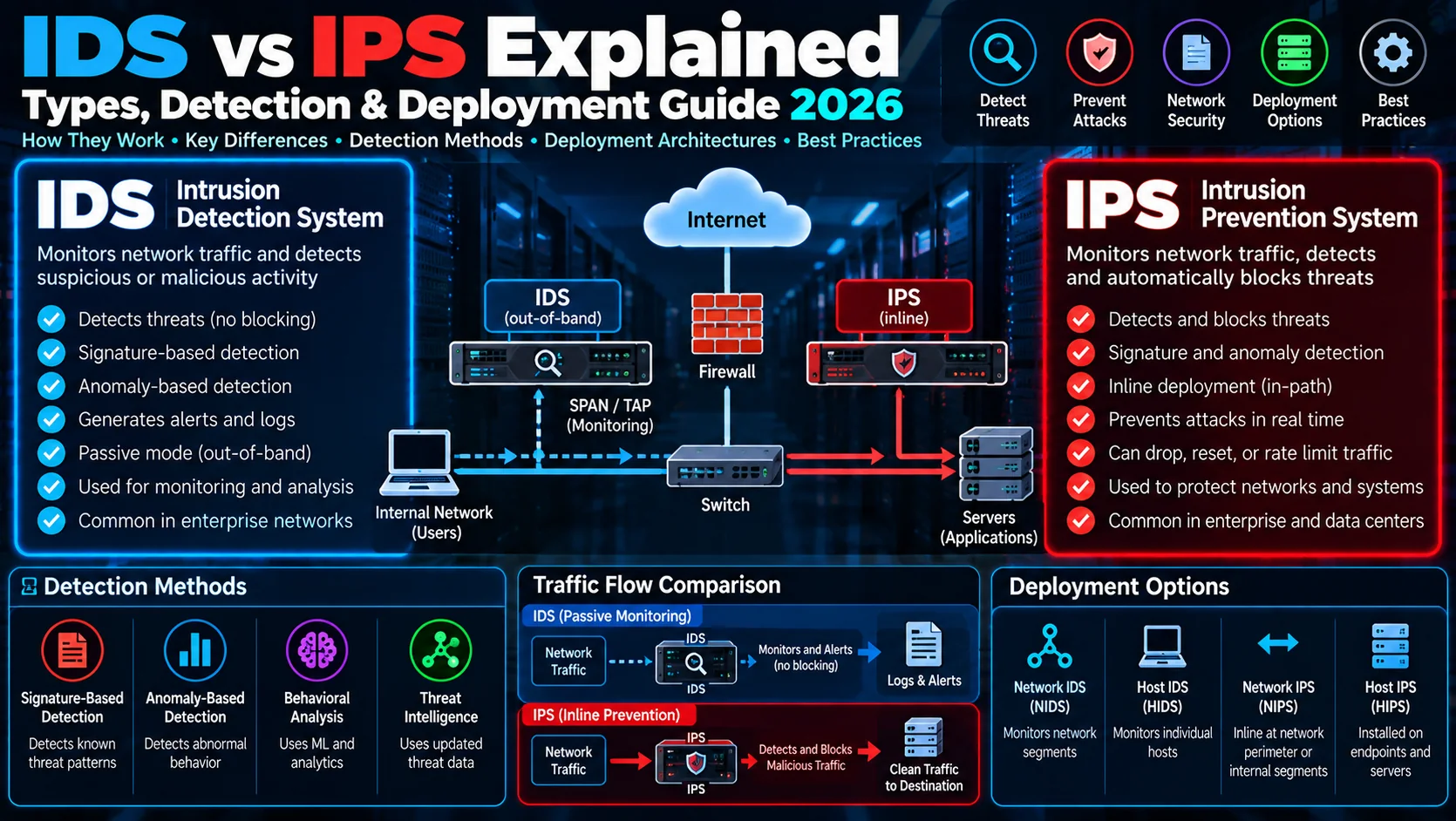

The fundamental difference is visibility versus enforcement.
| Feature | IDS | IPS |
|---|---|---|
| Detect threats | Yes | Yes |
| Generate alerts | Yes | Yes |
| Log events | Yes | Yes |
| Passive monitoring | Common | No for typical NIPS |
| Inline deployment | Usually no | Usually yes |
| Block traffic | Usually no | Yes |
| Drop packets | No | Yes |
| Reset connections | Usually no | Possible |
| Risk of blocking legitimate traffic | Low | Higher |
| Best for visibility | Excellent | Excellent |
| Best for active prevention | Limited | Excellent |
A simple way to remember the difference is:
IDS tells you that something suspicious may be happening. IPS can attempt to stop it.
This distinction matters when designing a security architecture. A passive IDS can provide visibility without becoming a potential network bottleneck, while an inline IPS gains enforcement capability at the cost of becoming part of the traffic path.
Although implementations vary, most IDS/IPS platforms follow a broadly similar process.
Traffic / Host Events
|
v
+----------------------+
| Data Collection |
+----------------------+
|
v
+----------------------+
| Traffic Normalization|
+----------------------+
|
v
+----------------------+
| Detection Engine |
+----------------------+
|
v
+----------------------+
| Rule / Behavior Match|
+----------------------+
|
+--+--+
| |
v v
Alert Block
| |
+--+--+
|
v
Logging
|
v
SIEMThe main stages typically include traffic or host-event collection, protocol analysis, stream reassembly, detection, classification, alert generation, optional prevention, logging, monitoring, and incident response.
Understanding protocols is particularly important because network-based IDS/IPS systems inspect communications across the networking stack. The TCP/IP model explained provides the underlying protocol context.
IDS/IPS deployment position determines which traffic a security team can observe and, in the case of an IPS, which traffic it can actively control.
A network IDS is commonly deployed passively at strategic monitoring points, while a network IPS is generally positioned inline where it can inspect and block traffic before that traffic reaches protected systems.
A simplified enterprise design could look like this:
Internet
|
v
Firewall
|
v
Inline IPS
|
v
Core Network
/ | \
/ | \
DMZ Servers Users
| |
IDS IDS
|
v
SIEMImportant monitoring positions include:
An inline IPS is appropriate where active prevention is required because packets must pass through the security control.
A passive IDS can instead receive copied traffic from a SPAN/mirror port or network TAP without becoming part of the forwarding path.
Organizations should also avoid monitoring only north-south Internet traffic. Monitoring east-west traffic between internal systems can help detect lateral movement after an attacker has already compromised a host.
Sensor placement should therefore reflect critical assets, network segmentation, traffic volume, encryption, availability requirements, threat models, and the security team’s ability to investigate the resulting alerts.
The underlying switches, routers and VLAN architecture directly affects what sensors can observe. See Routers, Switches and Network Devices for the networking architecture behind these deployment decisions.
An IDS/IPS may inspect multiple layers of network communication.
Ethernet
|
v
IP
|
v
TCP / UDP
|
v
TLS / HTTP / DNS / SSH / SMB
|
v
Application DataDeeper inspection can provide more useful information to the detection engine, but it can also increase CPU consumption, memory requirements, latency, storage requirements, and configuration complexity.
This creates an important engineering trade-off:
Security visibility vs performance.
Encrypted application traffic creates an additional challenge because the security device may be able to inspect connection metadata while remaining unable to inspect encrypted application payloads.
IDS and IPS technologies can use multiple detection techniques, including:
Modern security environments frequently combine several techniques rather than relying on a single method.
Signature-based detection looks for known patterns associated with attacks.
A rule could identify:
Conceptually:
Incoming traffic
|
v
Does traffic match
known attack signature?
|
+--+--+
| |
Yes No
| |
Alert ContinueSignature detection is particularly effective against known threats.
Its main limitation is that a completely new attack may not match an existing signature. This is one reason organizations combine signatures with anomaly detection, behavioral analytics, endpoint telemetry, and threat intelligence.
Detection systems rely heavily on rules.
A rule may define:
A simplified conceptual rule might look like:
IF
protocol = TCP
AND
destination_port = 80
AND
payload matches suspicious_pattern
THEN
generate_alertReal IDS/IPS rules can be considerably more sophisticated.
For example, the official Snort 3 Rule Writing Guide explains how Snort rules combine headers and rule options to define matching behavior.
Anomaly detection attempts to identify activity that differs from expected behavior.
For example:
Normal:
Server -> 50 DNS queries/hour
Suspicious:
Server -> 20,000 DNS queries/hourThe second pattern could potentially indicate malware, DNS tunneling, a misconfiguration, compromised software, or automated activity.
Anomaly detection can identify suspicious behaviors that do not match known signatures, but establishing an accurate baseline can be difficult.
Understanding normal DNS behavior is particularly useful here. The DNS Explained guide covers how DNS resolution works and why DNS telemetry can become useful security data.
Behavioral detection focuses on what a system, process, or user is doing rather than relying exclusively on known signatures.
User login
|
v
Access server
|
v
Enumerate network
|
v
Connect to multiple hosts
|
v
Attempt privileged accessIndividually, some events may appear legitimate. Together, they may indicate lateral movement or another suspicious sequence.
This is why modern security architectures increasingly combine IDS/IPS data with SIEM, EDR, identity systems, network telemetry, threat intelligence, and authentication logs.
Major IDS/IPS categories include:
These technologies provide different visibility and should be selected according to the environment being protected.
Network intrusion detection uses a Network Intrusion Detection System (NIDS) to monitor network traffic for suspicious activity, attacks, policy violations, and indicators of compromise.
NIDS sensors are commonly positioned at:
Example:
Internet
|
Firewall
|
Core Switch
|
+------ Servers
|
+------ Users
|
+------ NIDS SensorA NIDS can provide visibility across many systems from a centralized monitoring position.
However, its effectiveness depends heavily on sensor placement. A sensor cannot analyze traffic it cannot see. Network segmentation, asymmetric routing, encryption, SPAN configuration, TAP placement, packet loss, and virtualized/cloud traffic can therefore influence visibility.
A Network Intrusion Prevention System (NIPS) performs network-level inspection while operating inline.
Internet
|
Firewall
|
NIPS
|
Core Switch
|
Protected NetworkWhen malicious traffic is detected, the IPS may enforce a response.
Attacker
|
| Malicious packet
v
+-------+
| IPS |
+-------+
|
X DROPTechnologies such as Suricata support IDS and inline IPS use cases, including actions designed to drop or reject traffic.
Because NIPS is inline, throughput, latency and availability become critical design requirements.
A Host-Based Intrusion Detection System monitors activity on an individual machine.
It may monitor:
Linux Server
|
+-- /var/log/
|
+-- Processes
|
+-- Users
|
+-- Files
|
+-- Network connections
|
v
HIDSHIDS is particularly useful for critical servers because it provides visibility that a network sensor may not have.
For Linux environments, the Linux Server Administration Guide provides useful context for server processes, logs, permissions, services, and administration.
A Host-Based Intrusion Prevention System can actively prevent suspicious activity at the endpoint.
Examples include blocking unauthorized process execution, suspicious file modifications, certain exploit behaviors, or unauthorized configuration changes.
HIPS can complement endpoint protection and EDR technologies by providing host-level enforcement.
Wireless IDS/IPS systems monitor Wi-Fi environments.
They can help identify:
Wi-Fi Clients
|
v
Access Points
|
v
Wireless Controller
|
v
Wireless IDS/IPS
|
v
Security MonitoringWireless monitoring is particularly valuable because wireless networks create an access layer that may extend beyond traditional physical network boundaries.
Network behavior analysis focuses on unusual network activity.
Examples include:
This approach becomes especially useful when traditional signatures alone are insufficient.
IDS and firewalls solve different problems.
A firewall primarily controls traffic according to security policies. An IDS focuses on identifying suspicious behavior in observed activity, while an IPS can add enforcement.
| Technology | Primary Function |
|---|---|
| Firewall | Traffic access control |
| IDS | Threat detection |
| IPS | Threat detection + prevention |
| EDR | Endpoint detection and response |
| SIEM | Security event collection and correlation |
| NAC | Network access control |
A useful conceptual distinction is:
Firewall:
"Should this connection be allowed?"
IDS:
"Does this traffic look malicious?"
IPS:
"Should this malicious traffic be blocked?"
SIEM:
"What does this event mean when correlated with other events?"For a deeper explanation of firewall architectures and rules, see how network firewalls work.
IDS/IPS should not be considered a replacement for a firewall.
A common architecture is:
Internet
|
v
Firewall
|
v
IPS
|
v
Core Network
|
+------ Servers
|
+------ Users
|
+------ IoTThe firewall controls access according to policy. The IPS analyzes permitted traffic for malicious activity and can attempt to block detected attacks.
This provides defense in depth.
A broader introduction to these layers is available in Network Security Basics.
Segmentation can make IDS/IPS monitoring considerably more useful.
Instead of treating a large network as one security domain, an organization may separate systems into VLANs such as:
VLAN 10 - Users
VLAN 20 - Servers
VLAN 30 - Management
VLAN 40 - IoT
VLAN 50 - Guest
VLAN 60 - SecuritySensors can then monitor strategically important boundaries.
Segmentation also creates opportunities to monitor traffic moving between security zones rather than relying only on perimeter monitoring.
This becomes particularly valuable when combined with Network Access Control (NAC) and other identity- and policy-based controls.
There are several common IDS/IPS deployment models.
Traffic is copied to the IDS through mechanisms such as SPAN/mirror ports or network TAPs.
+------> IDS
|
Internet ---> Switch
|
+------> ServersAdvantages include low deployment risk, no direct interruption to the forwarding path, and excellent monitoring capabilities.
The major limitation is that a passive IDS does not directly block the observed packets.
The IPS is placed directly in the traffic path.
Internet
|
v
Firewall
|
v
IPS
|
v
SwitchIts primary advantage is immediate enforcement.
The trade-off is that failure, excessive latency, inadequate throughput, or incorrect blocking rules can affect legitimate network communication.
A network TAP provides a copy of network traffic to a monitoring system.
Network Link
|
+------ TAP ------> IDS
|
+------ DestinationTAP-based designs can provide reliable monitoring without depending exclusively on switch mirroring configuration.
A DMZ is a common location for IDS/IPS monitoring because it contains systems exposed to external traffic.
Internet
|
Firewall
|
+---- DMZ ---- Web Server
|
v
Internal Firewall
|
Internal NetworkSensors may monitor Internet-to-DMZ traffic, DMZ-to-Internet traffic, and DMZ-to-internal communication.
Monitoring DMZ-to-internal traffic is especially important because a compromised public-facing server could potentially become a stepping stone toward internal resources.
DNS provides valuable security telemetry.
An IDS may identify:
For example, an internal host that suddenly produces unusual volumes or types of DNS traffic may warrant investigation.
For the underlying protocol behavior, see how DNS works.
Encryption creates an important visibility challenge.
Client
|
HTTPS
|
Encrypted Traffic
|
v
IDSAn IDS may not be able to inspect encrypted application content without an appropriate decryption or inspection architecture.
Organizations must therefore consider:
Encrypted traffic should not automatically be considered trusted traffic simply because its application payload is unavailable to a passive sensor.
Where appropriate, a security gateway may decrypt traffic for inspection.
Client
|
Encrypted TLS
|
v
Security Gateway
|
Decrypt
|
Inspect
|
Re-encrypt
|
v
InternetTLS inspection introduces significant architectural complexity.
Poorly designed inspection can result in certificate errors, application failures, increased latency, CPU overhead, privacy concerns, and operational problems.
Organizations should therefore evaluate the security benefit against performance, privacy, regulatory, and application-compatibility requirements.
IDS/IPS generates valuable security events, but individual alerts become significantly more useful when correlated with information from other systems.
Events can therefore be forwarded to a Security Information and Event Management (SIEM) platform.
+-------------+
| IDS |
+-------------+
|
+-------------+
| IPS |
+-------------+
|
+-------------+
| SIEM |
+-------------+
/ | \
/ | \
Firewall EDR IAMA SIEM can correlate IDS alerts with firewall logs, authentication events, endpoint telemetry, DNS events, VPN activity, and cloud logs.
For example:
IDS:
Port scanning detected
+
Firewall:
Multiple connection attempts
+
Authentication:
Failed login attempts
+
EDR:
Suspicious process
=
Higher-confidence incidentThis correlation is considerably more useful than investigating isolated alerts.
See SIEM Explained for a deeper look at log collection, correlation, detection, and security monitoring.
IDS/IPS primarily provides network visibility, while EDR focuses on endpoint activity.
Security Operations
|
v
SIEM
/ \
/ \
IDS/IPS EDR
| |
Network EndpointTogether, these technologies can help investigators understand both how suspicious network activity occurred and what happened on the affected endpoint.
This becomes particularly important during lateral movement and post-compromise investigations.
One of the biggest IDS/IPS challenges is the false positive.
A false positive occurs when legitimate activity is incorrectly classified as malicious.
Legitimate backup
|
v
Large data transfer
|
v
IDS sees unusual traffic
|
v
False positiveToo many false positives can create alert fatigue, waste analyst time, reduce trust in detection systems, and make real attacks harder to identify.
A false negative occurs when malicious activity is not detected.
Real attack
|
v
IDS
|
X
No alertFalse negatives are particularly dangerous because defenders may not know that malicious activity occurred.
Security teams therefore need to balance:
Detection sensitivity vs operational noise.
Rule tuning is essential to maintaining useful detection.
A practical process is to understand normal traffic, identify critical systems, enable appropriate detection categories, monitor alerts, investigate false positives, adjust thresholds, remove unnecessary noise, test prevention policies, monitor performance, and periodically review the configuration.
Simply enabling every available rule can increase resource consumption and alert volume without necessarily improving detection quality.
A signature should identify malicious activity with sufficient precision to remain useful.
A conceptual example:
IF:
source = external
AND
destination = protected server
AND
protocol = TCP
AND
payload matches known exploit pattern
THEN:
alertAn IPS policy could instead specify an enforcement action:
THEN:
dropThe quality and context of detection rules directly affect security effectiveness.
Snort is a widely known open-source intrusion detection and prevention technology.
It can perform real-time traffic analysis, packet logging, intrusion detection, intrusion prevention, and rule-based inspection.
The official Snort project provides the engine and supporting resources, while the Snort 3 Rule Writing Guide documents rule structure and detection options.
Snort can be useful for learning IDS concepts, security research, network monitoring, and production deployments when appropriately engineered and maintained.
Suricata is an open-source network security engine supporting IDS, IPS, network security monitoring, protocol inspection, rule-based detection, and inline operation.
The official Suricata documentation covers installation, configuration, rules, performance, output formats, and IDS/IPS operation.
Suricata is frequently useful in security labs, enterprise monitoring, network-security platforms, SOC environments, and Linux-based monitoring systems.
| Feature | Snort | Suricata |
|---|---|---|
| IDS | Yes | Yes |
| IPS | Yes | Yes |
| Open source | Yes | Yes |
| Rule-based detection | Yes | Yes |
| Network monitoring | Yes | Yes |
| Inline operation | Yes | Yes |
| Protocol analysis | Yes | Yes |
| Security research | Excellent | Excellent |
| Learning resources | Extensive | Extensive |
The appropriate choice depends on architecture, traffic volume, performance requirements, rule compatibility, operating environment, integrations, and operational expertise.
The comparison should therefore not be reduced to declaring one universally better than the other.
A small organization might use an architecture such as:
Internet
|
Router / Firewall
|
IPS
|
Switch
|
+-- PCs
+-- Servers
+-- Wi-FiFor smaller networks, a security appliance may combine firewalling, IDS/IPS, VPN connectivity, DNS filtering, web filtering, and centralized logging.
Where VPNs are used for remote connectivity, our VPNs Explained guide covers the networking concepts behind encrypted tunnels.
Small organizations should still tune IDS/IPS policies rather than assuming default settings provide ideal detection for every environment.
Larger networks may require multiple sensors positioned around different trust zones.
Internet
|
Firewall
|
IPS
|
Core Network
__________|____________
| | |
DMZ Data Center Users
| | |
IDS IDS/IPS IDS
\ | /
\ | /
+------ SIEM ------+
|
v
SOCThis architecture provides visibility across different security zones.
There is no universal location that is correct for every IDS/IPS sensor. Placement should follow network topology, critical assets, expected attack paths, traffic capacity, encryption boundaries, and incident-response priorities.
Data centers require careful sensor placement.
Important monitoring points may include:
East-west traffic is particularly important because an attacker who compromises one server may attempt to move laterally toward other systems.
For the infrastructure surrounding these workloads, see Servers and Infrastructure Explained.
North-south traffic generally refers to communication crossing between internal environments and external networks.
Internet
|
v
Internal NetworkEast-west traffic generally describes communication between systems inside an environment.
Server A <----> Server BModern security architectures may need visibility into both.
Monitoring only the Internet edge can leave significant internal blind spots, particularly after an attacker has established an initial foothold.
IDS/IPS is not a replacement for Zero Trust.
Zero Trust architectures emphasize concepts such as identity, authentication, authorization, device posture, least privilege, and continuous verification.
IDS/IPS focuses more directly on traffic inspection, threat detection, alerting, and—when prevention is enabled—blocking suspicious traffic.
These approaches can complement each other.
Identity
+
NAC
+
Firewall
+
Zero Trust Controls
+
IDS/IPS
+
EDR
+
SIEMThis creates multiple layers rather than relying on a single security mechanism.
Network Access Control determines whether and under what conditions a device should receive network access.
IDS/IPS analyzes activity to identify potentially malicious behavior.
New Laptop
|
v
NAC
|
Device authenticated?
|
v
Network access
|
v
IDS/IPS
|
Suspicious activity?
|
v
Alert / BlockThese are complementary controls.
For more detail, see the CorgiNetwork guide to Network Access Control (NAC).
Useful IDS/IPS log fields may include:
Example:
TIME 2026-09-12 20:15:04
SOURCE 203.0.113.25
DESTINATION 10.10.20.15
PORT 443
PROTOCOL TCP
SIGNATURE Suspicious Web Exploit
SEVERITY HIGH
ACTION DROPThese logs should be protected against unauthorized modification and forwarded to appropriate monitoring infrastructure where required.
Organizations commonly classify alerts into levels such as:
| Severity | Example |
|---|---|
| Informational | Activity worth recording |
| Low | Suspicious but limited risk |
| Medium | Potential attack |
| High | Highly suspicious or confirmed activity |
| Critical | Severe active threat |
Severity alone should not determine incident priority.
Asset criticality and context matter. A medium-severity event affecting a critical identity or infrastructure server may require more urgent investigation than a technically higher-severity event affecting an isolated laboratory system.
IPS systems must process traffic quickly because they operate directly in the forwarding path.
Important factors include:
1 Gbps Traffic
|
v
Inspection Engine
|
+-- Protocol analysis
+-- Signature matching
+-- Logging
+-- PreventionA poorly sized IPS can become a performance bottleneck.
Peak traffic and packet rate can be as important as nominal link bandwidth.
An inline IPS can become a single point of failure if availability is not considered.
Internet
|
+----+----+
| |
IPS-A IPS-B
| |
+----+----+
|
NetworkDepending on the platform and architecture, organizations may use active/passive pairs, active/active designs, stateful failover, redundant interfaces, or bypass mechanisms.
High availability should therefore be considered before an inline IPS becomes a critical production dependency.
Inline security devices may use different failure behaviors.
If the security device fails:
Traffic continuesThe primary advantage is availability.
The security disadvantage is that inspection or enforcement may be bypassed during failure.
If the device fails:
Traffic stopsThis preserves a stronger enforcement posture but may affect business availability.
The appropriate approach depends on risk tolerance, system criticality, redundancy, architecture, and business requirements.
Possible causes include excessive rules, poor thresholds, missing baselines, and inadequate tuning.
The solution is not simply to ignore alerts. Prioritize meaningful detections, establish normal behavior, tune rules, and use correlation where appropriate.
Possible causes include false positives, overly broad signatures, incorrect network definitions, or unsuitable prevention policies.
A practical response is to identify the triggering rule, verify the traffic, determine whether it is legitimate, narrow the detection logic if appropriate, document exceptions, and monitor the result.
Possible causes include high traffic volume, excessive rule sets, deep packet inspection, TLS inspection, and heavy logging.
On Linux-based sensors, basic system checks can include:
topor:
htopFor additional diagnostic utilities, see the Linux Network Tools Guide.
Packet loss can make network intrusion detection unreliable because a sensor cannot analyze packets it never receives.
Useful Linux checks include:
ip -s linkand:
ethtool eth0Interface-specific statistics can also be inspected with:
ip -s link show eth0Look for RX drops, TX drops, errors, overruns, interface problems, and resource exhaustion.
Packet loss can originate from the monitoring interface, SPAN configuration, TAP architecture, insufficient processing capacity, kernel buffering, storage pressure, or an overloaded detection engine.
When an alert appears, investigate the context rather than treating the signature name as a final verdict.
Determine:
This transforms an isolated alert into an incident investigation.
Imagine an IDS reports:
Possible exploit attempt
Source: 203.0.113.25
Target: 10.10.20.30An investigation might follow:
IDS Alert
|
v
Firewall Logs
|
v
Server Logs
|
v
EDR Events
|
v
Authentication Logs
|
v
DNS Logs
|
v
SIEM CorrelationPossible findings could include an initial exploit attempt, successful authentication, suspicious process execution, an outbound connection, or command-and-control activity.
The IDS alert may therefore represent only the beginning of the investigation.
Effective IDS/IPS operation starts with knowing the network. Maintain accurate information about IP ranges, VLANs, servers, applications, and critical assets.
Define protected networks correctly so the detection engine understands which systems and directions matter. Tune detection rules to reduce unnecessary noise without blindly suppressing important alerts.
Keep signatures and detection content current. Monitor CPU, memory, interface drops, latency, and packet loss. Centralize important security events in a SIEM where appropriate.
Protect the management plane and limit administrative privileges. Test IPS blocking policies before enabling aggressive enforcement in production.
Finally, connect IDS/IPS alerts to a documented incident-response process. Detection without investigation and response provides limited security value.
Before deploying IDS/IPS, map the network and identify critical assets. Determine expected traffic volumes and choose monitoring positions based on the traffic that matters most.
Decide whether each location requires passive IDS monitoring, inline IPS enforcement, or a hybrid approach.
Define protected networks, configure logging, integrate with SIEM where appropriate, enable relevant rules, test detection, and carefully validate prevention.
Monitor performance after deployment, design high availability where necessary, document exceptions, and establish an incident-response workflow.
The goal is not merely to install an IDS/IPS appliance. The goal is to create reliable detection and response coverage.
| Technology | Main Purpose |
|---|---|
| Firewall | Control network access |
| IDS | Detect suspicious activity |
| IPS | Detect and block suspicious activity |
| NAC | Control device network access |
| EDR | Detect and respond to endpoint threats |
| SIEM | Collect and correlate security events |
| VPN | Secure network communication |
| Zero Trust | Apply identity- and context-aware access principles |
These technologies should be viewed as complementary rather than interchangeable.
A well-designed architecture assigns each control a specific purpose and connects their telemetry and response processes.
A mature organization might use:
INTERNET
|
v
+-----------+
| Firewall |
+-----------+
|
v
+-----------+
| IPS |
+-----------+
|
v
+-------------+
| NAC / ZTNA |
+-------------+
|
v
Core Network
/ | \
/ | \
Servers Users IoT
| | |
EDR EDR EDR
\ | /
\ | /
+--- SIEM ---+
|
v
SOCThis architecture demonstrates an important principle:
No single security control should be expected to stop every attack.
That principle is also central to broader network security fundamentals.
An IDS/IPS is most valuable when connected to a defined response process.
A simplified workflow is:
Detection
|
v
Validation
|
v
Classification
|
v
Containment
|
v
Eradication
|
v
Recovery
|
v
Lessons LearnedFor example, an IPS may block an exploit attempt, but security teams still need to determine who launched the activity, whether another system was already compromised, whether the target was vulnerable, whether previous related activity exists, and whether credentials or data were affected.
Blocking one packet is not equivalent to completing an incident investigation.
IDS/IPS is powerful, but it is not perfect.
Important limitations include:
IDS/IPS should therefore be integrated with broader security controls rather than treated as a complete security strategy.
Signature-based systems can struggle with attacks for which no suitable detection signature exists.
However, behavioral and anomaly-based methods may sometimes identify suspicious characteristics even without an exact signature.
Unknown attack
|
v
No known signature
|
v
Unusual network behavior
|
v
Behavioral detection
|
v
AlertThis does not mean behavioral detection guarantees detection of zero-day attacks. It means multiple detection approaches can provide broader visibility than signatures alone.
Cloud networks change traditional monitoring architecture.
Instead of observing only physical links, organizations may need visibility across:
Cloud Network
|
+-- Network telemetry
|
+-- Cloud firewall
|
+-- IDS/IPS
|
+-- Workload security
|
+-- Identity
|
+-- SIEMNetwork inspection remains useful, but cloud security frequently requires additional telemetry and cloud-native controls.
For the networking concepts behind virtual networks, routing, segmentation, and cloud connectivity, see Cloud Networking Explained and Cloud Computing Explained.
Containers can create highly dynamic network environments.
Security teams may need to consider:
Traditional perimeter monitoring alone may not provide sufficient visibility into these environments.
The monitoring strategy must therefore account for where workload traffic actually flows rather than assuming every communication crosses a physical perimeter device.
IoT devices often have limited security capabilities.
Network intrusion detection can provide an additional security layer by identifying unexpected destinations, scanning, abnormal protocols, botnet activity, and unauthorized communication.
For example:
IoT Camera
|
| Normally:
| Camera -> NVR
|
X Unexpected:
| Camera -> External Server
|
v
IDS AlertSegmentation and NAC can further limit what IoT devices are allowed to reach. This is another reason Network Access Control and IDS/IPS work well as complementary technologies.
The correct IDS/IPS solution depends on the environment rather than on a single product feature.
For a small network, one security appliance may provide adequate coverage. Large environments may require distributed sensors and centralized management.
Traffic capacity must be evaluated carefully, particularly for inline IPS. Consider peak bandwidth, packets per second, application protocols, encrypted traffic, logging requirements, and enabled rules.
Detection requirements may include signatures, anomaly detection, protocol analysis, behavioral techniques, and threat intelligence.
Integration is also important. Evaluate compatibility with SIEM, EDR, firewalls, NAC, identity platforms, APIs, and automation systems.
Finally, evaluate operational requirements such as central management, rule updates, reporting, automation, high availability, and the expertise required to maintain the platform.
Consider an organization with public web servers, internal applications, employee devices, guest Wi-Fi, IoT devices, and remote workers.
One possible architecture is:
INTERNET
|
Firewall
|
IPS
|
+---------+---------+
| |
DMZ Internal
| |
Web Apps Core Switch
|
+------------+------------+
| | |
Users Servers IoT
| | |
EDR EDR Network IDS
\ | /
\ | /
+-------- SIEM --------+
|
v
SOCThis architecture combines perimeter access control, inline prevention, passive network detection, endpoint monitoring, centralized analytics, and security operations.
It is an example rather than a universal template. Actual sensor placement should follow the organization’s topology and threat model.
IDS stands for Intrusion Detection System. It monitors network or host activity and generates alerts when suspicious behavior is detected.
IPS stands for Intrusion Prevention System. It detects suspicious activity and can attempt to block malicious traffic or other unwanted activity.
IDS primarily provides detection and alerts. A network IPS is typically deployed inline and can actively block or reject traffic that matches configured prevention logic.
Network intrusion detection is the process of monitoring network traffic for attacks, suspicious behavior, policy violations, and other indicators of compromise, typically using a Network Intrusion Detection System (NIDS).
IDS sensors can be deployed at strategic monitoring locations such as Internet gateways, DMZs, server networks, critical VLANs, data-center segments, and east-west traffic paths. An IPS is typically deployed inline where it can inspect and block traffic before it reaches protected systems.
It depends on the monitoring objective. Monitoring outside a firewall can provide visibility into activity directed at the perimeter, while monitoring behind the firewall focuses more heavily on traffic that passed perimeter controls. Some architectures monitor multiple locations.
No. A firewall primarily controls network access according to policy, while an IPS analyzes traffic for malicious behavior and can attempt to block detected threats. Modern security products may combine both functions, but the underlying concepts remain distinct.
A traditional passive network IDS normally does not directly block the packets it observes. An inline IPS is designed to provide active prevention.
NIDS means Network Intrusion Detection System. It monitors network traffic for suspicious or malicious activity.
NIPS means Network Intrusion Prevention System. It performs network-based detection while operating inline so it can apply prevention actions.
HIDS means Host-Based Intrusion Detection System. It monitors activity on individual hosts.
Snort supports both intrusion detection and intrusion prevention use cases.
Suricata supports IDS, network security monitoring, and inline IPS operation.
Detection depends on the information visible to the sensor. Encryption can prevent inspection of application payloads unless an appropriate decryption or inspection architecture is used, although metadata and other observable network behavior may still provide useful information.
IDS/IPS can be useful for small organizations, particularly when the capability is integrated into an appropriately managed security platform. The value depends on the organization’s network, risk profile, ability to maintain the system, and capacity to respond to alerts.
IDS and IPS are important components of modern network security.
The essential principles are straightforward: IDS detects suspicious activity, while IPS adds the ability to attempt active prevention. NIDS monitors network traffic, HIDS monitors hosts, and NIPS is normally deployed inline.
Signature-based detection is useful for known threats, while behavioral and anomaly-based approaches can provide additional visibility into unusual activity. Neither approach is perfect, so false positives and false negatives must be considered.
Sensor placement is critical. Organizations should consider perimeter, DMZ, server, data-center, cloud, and east-west monitoring requirements rather than assuming a single Internet-edge sensor provides complete visibility.
IPS performance is especially important because an inline system becomes part of the traffic path.
IDS/IPS also becomes more useful when integrated with SIEM, EDR, firewalls, NAC, identity controls, segmentation, and incident-response workflows.
No single security product can provide complete protection.
If you are building a modern network-security architecture, do not treat IDS/IPS as a standalone product.
A stronger conceptual model is:
Firewall
|
v
IDS / IPS
|
v
Network Segmentation / NAC
|
v
EDR
|
v
SIEM
|
v
Incident ResponseThe exact ordering and architecture will differ between environments, but the underlying principle remains the same:
combine prevention, detection, visibility, segmentation, endpoint telemetry, centralized correlation, and incident response.
Start by understanding your network topology and critical assets. Decide which traffic needs passive visibility and where active prevention is justified. Deploy sensors where they can actually observe the relevant traffic, tune detection logic to the environment, monitor performance, centralize useful events, and continuously improve the response process.
IDS/IPS is most effective when it becomes part of a broader, layered security architecture—not when it is expected to defend the network alone.
AI Agents as Code: Managing AI Agent Configurations, Prompts and Tools with Git AI agents…
Data Center Power Distribution Architecture: UPS, PDU, Redundancy and Rack Power Explained Data center power…
DNSSEC Troubleshooting: Fix SERVFAIL & DNSKEY Errors DNSSEC Troubleshooting: How to Fix SERVFAIL, DS, DNSKEY…
Terraform State Management Explained: Remote State, Locking, Backends and Best Practices Terraform makes infrastructure reproducible…
RTO vs RPO Explained: Disaster Recovery Objectives, Examples and Planning A disaster recovery plan is…
Network Intrusion Detection Explained: NIDS, Sensors, Signatures and Traffic Analysis A firewall can decide whether…
