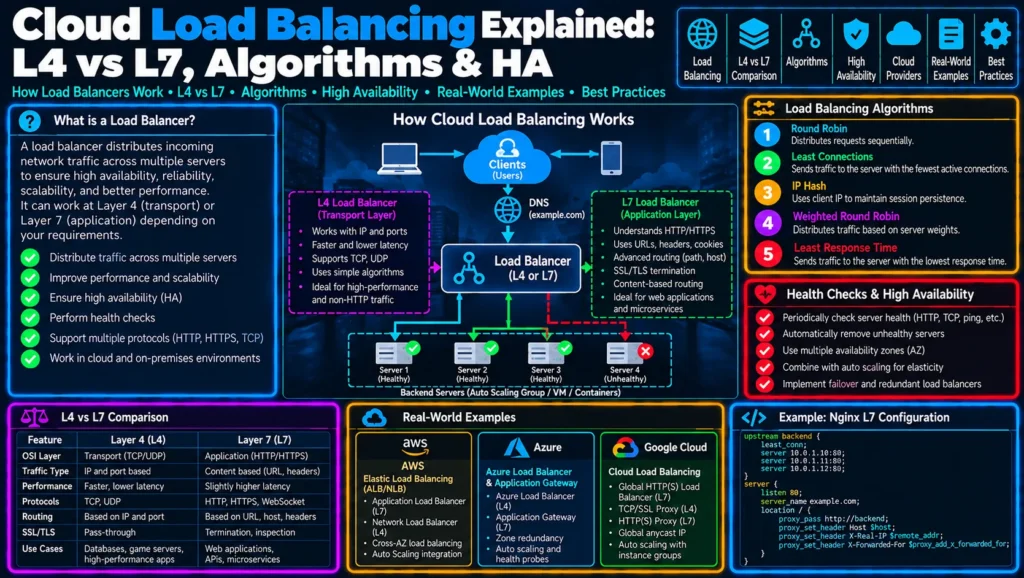

Cloud Load Balancing Explained: L4 vs L7, Algorithms, Health Checks, High Availability and Global Traffic Distribution

Introduction: What Is Cloud Load Balancing?

Modern applications rarely run on a single server.

A production application may have:

multiple application servers
multiple availability zones
multiple containers
multiple virtual machines
multiple database replicas
multiple geographic regions
autoscaling infrastructure
API gateways
caching layers
security controls

This creates an important architectural problem:

How should incoming traffic be distributed across available application resources?

The answer is often load balancing.

A load balancer is a component that receives network traffic and distributes it across multiple backend servers or services according to defined rules.

A simplified architecture looks like this:

                    Internet
                       │
                       ▼
                     DNS
                       │
                       ▼
                Cloud Load Balancer
                       │
          ┌────────────┼────────────┐
          ▼            ▼            ▼
       Server A      Server B      Server C
          │            │            │
          └────────────┼────────────┘
                       ▼
                  Application

Load balancing is therefore much more than simply “splitting traffic.”

Modern cloud load balancers can perform:

traffic distribution
health checking
TLS termination
session management
routing
failover
security filtering
path-based routing
host-based routing
geographic traffic distribution
integration with autoscaling
observability

If you are building a cloud architecture from the beginning, it is useful to understand the broader principles explained in our Cloud Computing Explained guide.

1. Why Load Balancing Is Necessary

Imagine a website running on a single server:

100 Users
    │
    ▼
 Server A

If traffic increases:

10,000 Users
      │
      ▼
   Server A
      │
      ▼
  Overloaded

The server may eventually experience:

CPU saturation
memory pressure
connection exhaustion
high latency
application errors
timeouts
service interruption

A load-balanced architecture distributes the workload:

             10,000 Users
                   │
                   ▼
             Load Balancer
                   │
       ┌───────────┼───────────┐
       ▼           ▼           ▼
   Server A    Server B    Server C

The architecture can then scale horizontally.

2. Horizontal vs Vertical Scaling

Load balancing is closely connected to horizontal scaling.

Vertical Scaling

Increase the resources of one server:

4 CPU / 16 GB RAM
        ↓
16 CPU / 64 GB RAM

This is often called scale up.

Horizontal Scaling

Add more servers:

       Application
            │
     ┌──────┼──────┐
     ▼      ▼      ▼
   Server Server Server
     A      B      C

This is called scale out.

Cloud architectures frequently combine both approaches.

For background on virtualized infrastructure, see Virtualization Explained.

3. How a Cloud Load Balancer Works

The basic request flow is:

Client
  │
  │ Request
  ▼
Load Balancer
  │
  ├── Health Check
  │
  ├── Routing Decision
  │
  ├── Backend Selection
  │
  ▼
Application Server
  │
  ▼
Response
  │
  ▼
Load Balancer
  │
  ▼
Client

The load balancer maintains knowledge about backend resources.

For example:

Backend Pool

Server A → Healthy
Server B → Healthy
Server C → Unhealthy
Server D → Healthy

The load balancer should avoid sending new traffic to Server C if its health-check configuration determines that it is unavailable.

4. What Is a Backend Pool?

A backend pool is a collection of servers or services that can process incoming traffic.

Example:

                    Load Balancer
                          │
                 Backend Target Group
                          │
          ┌───────────────┼───────────────┐
          ▼               ▼               ▼
      Web Server 1    Web Server 2    Web Server 3

Depending on the cloud platform, backend targets may be:

virtual machines
containers
Kubernetes services
IP addresses
serverless endpoints
instance groups
managed services

This makes load balancing a central component of modern cloud-native architectures.

5. Layer 4 vs Layer 7 Load Balancing

One of the most important concepts is the difference between Layer 4 and Layer 7 load balancing.

The distinction is based on the OSI networking model.

Our Computer Networking Explained guide provides the broader networking foundation needed to understand these layers.

6. What Is Layer 4 Load Balancing?

Layer 4 operates primarily using transport-layer information.

Common protocols include:

A Layer 4 load balancer can make decisions using information such as:

source IP
destination IP
source port
destination port
protocol

Conceptually:

Client
  │
  │ TCP :443
  ▼
L4 Load Balancer
  │
  ├── Server A
  ├── Server B
  └── Server C

The load balancer does not necessarily need to understand the application-level HTTP request.

7. Advantages of Layer 4 Load Balancing

L4 load balancing can provide:

low processing overhead
high throughput
low latency
TCP/UDP support
protocol flexibility
efficient connection distribution

It is particularly useful for workloads where application-level inspection is unnecessary.

Examples can include:

TCP services
UDP services
high-throughput network applications
custom protocols
certain real-time systems

8. What Is Layer 7 Load Balancing?

Layer 7 operates at the application layer.

For web applications, this commonly means HTTP or HTTPS.

A Layer 7 load balancer can inspect request information such as:

HTTP method
host header
URL path
query parameters
cookies
HTTP headers

For example:

GET /api/users

could be routed differently from:

GET /images/logo.png

Architecture:

                 HTTPS
                   │
                   ▼
             L7 Load Balancer
                   │
        ┌──────────┼──────────┐
        │          │          │
        ▼          ▼          ▼
      /api       /shop      /static
        │          │          │
        ▼          ▼          ▼
    API Pool    App Pool   CDN/Pool

This enables much more intelligent application routing.

9. L4 vs L7 Load Balancing

Feature	L4	L7
OSI layer	Transport	Application
TCP	Yes	Usually supported through HTTP/TLS-aware services
UDP	Common	Service-dependent
HTTP awareness	No/limited	Yes
URL routing	No	Yes
Host routing	No	Yes
Cookie routing	No	Yes
Processing overhead	Lower	Higher
Application awareness	Low	High
Typical use	Network traffic	Web/API applications

Neither approach is universally correct.

The architecture should match the traffic type and application requirements.

10. Load Balancing Algorithms

A load balancer needs a method for selecting a backend.

Common algorithms include:

round robin
weighted round robin
least connections
weighted least connections
IP hash
consistent hashing
latency-based routing
geographic routing

11. Round Robin

The simplest model is:

Request 1 → Server A
Request 2 → Server B
Request 3 → Server C
Request 4 → Server A
Request 5 → Server B
Request 6 → Server C

This works well when backend servers have relatively similar capacity and workload characteristics.

12. Weighted Round Robin

Suppose:

Server A = weight 5
Server B = weight 3
Server C = weight 2

The load balancer can distribute more traffic to Server A.

This is useful when:

servers have different sizes
some nodes are more powerful
gradual migrations are required
canary deployments are being performed

13. Least Connections

Instead of simply rotating servers, the load balancer sends traffic toward servers with fewer active connections.

Example:

Server A → 200 connections
Server B → 80 connections
Server C → 120 connections

A new connection may therefore be directed toward Server B.

This can be useful when connections have significantly different durations.

14. IP Hash and Session Affinity

Some applications historically depend on users returning to the same backend server.

A simplified model is:

Client IP
    │
    ▼
Hash Function
    │
    ▼
Backend Selection

Another technique is session affinity, sometimes called sticky sessions.

For example:

User A ─────────► Server A
User A ─────────► Server A
User A ─────────► Server A

This can simplify applications that store session state locally.

However, stateless application architecture is generally easier to scale.

15. Stateless vs Stateful Applications

A stateless application does not depend on local memory on a particular server for user session state.

Instead:

             Load Balancer
                   │
        ┌──────────┼──────────┐
        ▼          ▼          ▼
     Server A   Server B   Server C
        │          │          │
        └──────────┼──────────┘
                   ▼
             Shared State

Shared state could be stored in:

database
cache
object storage
dedicated session service

This architecture allows traffic to move more freely between backend servers.

16. Why Stateless Architecture Matters

Consider:

Request 1 → Server A
Request 2 → Server B
Request 3 → Server C

If the application requires every request from the same user to return to Server A, scaling becomes more difficult.

A stateless application allows:

Request 1 → A
Request 2 → B
Request 3 → C
Request 4 → A

without breaking application state.

This is especially useful with:

autoscaling
containers
Kubernetes
serverless architectures
multi-zone deployments

17. Health Checks

One of the most important load-balancer functions is health checking.

A load balancer may periodically test:

GET /health

and expect:

HTTP 200 OK

If a backend repeatedly fails:

Server B
   │
   ▼
Health Check
   │
   ▼
Failed
   │
   ▼
Removed from Traffic

Health checks prevent the load balancer from continuously sending traffic to unhealthy resources.

18. Health Check Types

Health checks may operate at different levels.

TCP Health Check

Tests whether a TCP connection can be established.

Can I connect to port 443?

HTTP Health Check

Tests an HTTP endpoint.

GET /health

Application Health Check

The endpoint can verify dependencies.

For example:

Application
    │
    ├── Database
    ├── Cache
    └── Required Service

But deep health checks must be designed carefully.

If every minor dependency failure marks the entire application unhealthy, a temporary dependency problem can remove every backend from service.

19. Health Check Example

A good health endpoint might return:

{
  "status": "healthy",
  "version": "2.4.1"
}

But a production system might distinguish between:

/liveness
/readiness

Liveness

Answers:

Is the process alive?

Readiness

Answers:

Can this instance safely receive production traffic?

This distinction is particularly important in containerized and orchestrated environments.

20. TLS Termination

Cloud load balancers can often terminate TLS connections.

Without TLS termination:

Client
  │ HTTPS
  ▼
Load Balancer
  │ HTTPS
  ▼
Application

With TLS termination:

Client
  │ HTTPS
  ▼
Load Balancer
  │ HTTP or HTTPS
  ▼
Application

The second design reduces encryption work on backend servers, but whether HTTP is acceptable internally depends on the security architecture.

For sensitive workloads, encryption may remain enabled between the load balancer and backend.

21. End-to-End TLS

A stronger architecture can use:

Client
  │
  │ HTTPS
  ▼
Load Balancer
  │
  │ HTTPS
  ▼
Application

This provides encryption across both network segments.

Certificate management becomes an important operational concern.

22. Host-Based Routing

A Layer 7 load balancer can route traffic according to the hostname.

For example:

api.example.com
        │
        ▼
     API Pool

shop.example.com
        │
        ▼
     Shop Pool

admin.example.com
        │
        ▼
    Admin Pool

This allows multiple applications to share infrastructure.

23. Path-Based Routing

Traffic can also be routed according to URL paths.

Example:

example.com/api/*
        ↓
API Servers

example.com/images/*
        ↓
Static Servers

example.com/app/*
        ↓
Application Servers

This pattern is extremely useful for modern web architectures.

24. Header-Based Routing

Some advanced application load balancers can route based on HTTP headers.

For example:

X-API-Version: v2

could be directed toward a version-specific backend.

This can support:

API versioning
testing
feature flags
migration strategies
controlled rollouts

25. Canary Deployments

Load balancing can support gradual software releases.

For example:

             100% Traffic
                   │
                   ▼
             Load Balancer
              /          \
             /            \
          95%              5%
           │                │
           ▼                ▼
       Version 1         Version 2

The new version can receive a small percentage of traffic.

If monitoring indicates problems, traffic can be reduced or removed.

This is an important DevOps deployment pattern.

26. Blue-Green Deployment

Another deployment strategy is:

             Load Balancer
                   │
             ┌─────┴─────┐
             ▼           ▼
          Blue         Green
         Version 1    Version 2

Initially:

100% → Blue

After validation:

100% → Green

If rollback is necessary:

100% → Blue

This can make deployment rollback relatively straightforward.

27. Load Balancing and Autoscaling

Load balancing becomes particularly powerful when combined with autoscaling.

Architecture:

                 Users
                   │
                   ▼
             Load Balancer
                   │
        ┌──────────┼──────────┐
        ▼          ▼          ▼
      Server     Server     Server
        │          │          │
        └──────────┼──────────┘
                   ▲
                   │
              Autoscaling
                   │
             ┌─────┴─────┐
             ▼           ▼
          Add Node    Remove Node

If traffic increases:

Traffic ↑
   ↓
CPU/Request metrics ↑
   ↓
New instances
   ↓
Load balancer registers them

If traffic decreases:

Traffic ↓
   ↓
Capacity requirement ↓
   ↓
Instances removed

This is one of the fundamental patterns behind elastic cloud infrastructure.

28. Load Balancing Across Availability Zones

A resilient cloud architecture should avoid depending on one failure domain.

Conceptually:

                 Load Balancer
                       │
           ┌───────────┼───────────┐
           ▼           ▼           ▼
        Zone A       Zone B      Zone C
           │           │           │
        Server       Server       Server

If Zone A experiences a failure, traffic can continue toward healthy resources elsewhere.

The exact implementation differs between providers.

29. Load Balancing Across Regions

Global applications may require multiple geographic regions.

Example:

                 Global Users
                      │
                      ▼
               Global Routing
                 /         \
                /           \
               ▼             ▼
          Region Europe   Region America
               │             │
               ▼             ▼
             Load           Load
           Balancer       Balancer
               │             │
             App Pool      App Pool

Traffic can be distributed according to:

geography
latency
health
capacity
routing policy

This is commonly called global load balancing or global traffic management, depending on the provider.

30. Regional vs Global Load Balancing

Feature	Regional	Global
Scope	One region	Multiple regions
Primary purpose	Local distribution	Geographic distribution
Complexity	Lower	Higher
Failover	Zone-level	Region-level
Latency optimization	Limited	Geographic
Disaster recovery	Moderate	Stronger potential
Cost	Usually lower	Usually higher

Global architecture introduces additional considerations such as:

data replication
consistency
DNS
regional capacity
compliance
data residency
network costs

31. DNS and Load Balancing

DNS often participates in global traffic distribution.

Conceptually:

User
 │
 ▼
DNS
 │
 ├── Region A
 ├── Region B
 └── Region C

For example, DNS policies can be based on:

geographic location
latency
health
weighted traffic

However, DNS-based failover has limitations because DNS responses may be cached according to TTL behavior.

Therefore, DNS and load balancing should be designed together.

32. Load Balancing and Cloud Networking

Load balancers depend heavily on network architecture.

Important components include:

subnets
routing tables
security groups
firewalls
private IP addresses
public IP addresses
NAT
DNS

Our Cloud Networking Explained guide covers these concepts in detail.

A simplified architecture is:

Internet
   │
   ▼
Public Load Balancer
   │
   ▼
Private Subnet
   │
   ▼
Application Servers

This separates public ingress from private application resources.

33. Load Balancers and Firewalls

A load balancer is not automatically a complete security system.

You may still need:

network firewalls
web application firewalls
access controls
DDoS protection
authentication
rate limiting

For network-layer protection, see Firewalls Explained.

For the broader security architecture, see Network Security Basics.

34. Load Balancer vs Reverse Proxy

These concepts overlap but are not identical.

A reverse proxy receives requests on behalf of backend servers.

Client
  │
  ▼
Reverse Proxy
  │
  ▼
Backend

A load balancer can function as a reverse proxy while also distributing traffic across multiple backends.

Modern cloud application load balancers often combine:

reverse proxying
load balancing
TLS termination
routing
health checks
security features

35. Load Balancer vs API Gateway

These services can also overlap.

An API gateway may provide:

authentication
authorization
rate limiting
API transformation
request validation
API versioning
developer management

A load balancer primarily focuses on traffic distribution and availability.

Some cloud platforms combine or integrate these capabilities.

36. Connection Draining

Suppose Server B needs to be removed.

Immediately terminating it could break active connections.

Connection draining provides a safer process:

Server B
   │
   ▼
Stop New Connections
   │
   ▼
Existing Requests Complete
   │
   ▼
Remove Server

This is especially useful during:

deployments
autoscaling
maintenance
instance replacement

37. Graceful Shutdown

Applications should support graceful shutdown.

For example:

SIGTERM
   │
   ▼
Stop accepting new requests
   │
   ▼
Finish active requests
   │
   ▼
Close connections
   │
   ▼
Shutdown

This works together with load-balancer draining.

Without graceful shutdown, even a sophisticated load-balancing architecture can cause avoidable request failures during deployments.

38. Session Management

If an application requires sessions, there are several approaches.

Sticky Sessions

User → Server A

Shared Session Store

Server A ─┐
Server B ─┼──► Redis / Database
Server C ─┘

Stateless Tokens

For example, an application can use signed tokens so that session state does not depend entirely on a specific server.

The correct model depends on the application’s security and state-management requirements.

39. Load Balancing and Databases

Load balancing is not limited to HTTP servers.

Some database systems can use load-balancing patterns for read workloads.

Example:

Application
     │
     ▼
Database Routing
   /       \
  ▼         ▼
Primary   Read Replica

Writes may go to the primary while read queries are distributed among replicas.

However, applications must account for:

replication lag
read-after-write consistency
transaction boundaries
failover behavior

For the database architecture itself, see our Cloud Databases Explained guide.

40. Load Balancing for WebSockets

Traditional HTTP request/response traffic is relatively simple.

WebSockets create long-lived connections:

Client
  │
  │ Persistent Connection
  ▼
Load Balancer
  │
  ▼
Server

The load balancer must support the protocol and maintain the connection appropriately.

Applications may also need:

connection affinity
shared state
message brokers
distributed session management

41. UDP Load Balancing

Not all applications use HTTP.

UDP can be important for:

DNS
streaming
gaming
real-time systems
telemetry
custom protocols

Layer 4 load balancing is often relevant for these workloads.

The provider’s specific UDP support, timeout behavior, health checks, and regional capabilities must be verified against current documentation.

42. Load Balancing and DDoS Protection

Load balancing can improve resilience by distributing legitimate traffic across infrastructure.

But a load balancer alone is not a complete DDoS defense.

A layered architecture might include:

Internet
   │
   ▼
DDoS Protection
   │
   ▼
WAF / Security Layer
   │
   ▼
Load Balancer
   │
   ▼
Application

This is an example of defense in depth.

43. Rate Limiting

Rate limiting controls how many requests a client can make within a defined period.

For example:

Client
  │
  ▼
100 requests/minute
  │
  ▼
Allowed

Excessive requests may be rejected or delayed.

Rate limiting can protect against:

abusive clients
accidental traffic spikes
API misuse
certain automated attacks

It should be combined with authentication and broader security controls.

44. Observability for Load Balancers

A production load balancer should be monitored.

Important metrics can include:

request count
request latency
error rate
HTTP status codes
backend health
active connections
connection errors
TLS errors
throughput
backend response time

A useful model is:

              Observability
                    │
       ┌────────────┼────────────┐
       ▼            ▼            ▼
     Metrics       Logs        Traces
       │            │            │
       └────────────┼────────────┘
                    ▼
              Troubleshooting

For broader monitoring and security-event correlation, see SIEM Explained.

45. Load Balancing Troubleshooting

When an application behind a load balancer fails, use a structured process.

Client
  │
  ▼
DNS
  │
  ▼
Load Balancer
  │
  ▼
Backend
  │
  ▼
Application
  │
  ▼
Database

Test each layer separately.

Step 1: Test DNS

Verify that the domain resolves to the expected endpoint.

Step 2: Test the Load Balancer

Check:

listener
port
protocol
TLS certificate
security rules

Step 3: Check Backend Health

Determine whether backend targets are marked healthy.

Step 4: Test Backend Directly

Where appropriate, test the application without the load balancer.

Step 5: Check Firewall Rules

Ensure the load balancer can communicate with backend resources.

Step 6: Check Application Logs

Look for:

connection errors
crashes
timeouts
invalid requests

46. Common Load Balancer Errors

HTTP 502 Bad Gateway

Often indicates that the proxy/load balancer could not obtain a valid response from the backend.

Possible causes include:

backend crash
invalid upstream response
connection failure
timeout

HTTP 503 Service Unavailable

Can occur when no healthy backend is available or the service is otherwise unable to serve the request.

HTTP 504 Gateway Timeout

Usually indicates that the upstream service did not respond within the configured timeout.

These status codes do not identify one universal root cause.

Always inspect logs and backend health information.

47. Load Balancing Security Checklist

Before production deployment:

[ ] TLS configured
[ ] Certificates managed
[ ] Backend access restricted
[ ] Health checks configured
[ ] Security groups/firewall rules reviewed
[ ] Administrative interfaces protected
[ ] Rate limiting considered
[ ] DDoS protection evaluated
[ ] Logging enabled
[ ] Monitoring enabled
[ ] Alerts configured
[ ] Backend encryption evaluated
[ ] Access policies reviewed
[ ] Failover tested

Load balancing should be treated as part of the overall security architecture, not as a standalone security mechanism.

48. AWS Load Balancing

AWS provides multiple load-balancing capabilities through Elastic Load Balancing.

The major load-balancer families include:

Application Load Balancer
Network Load Balancer
Gateway Load Balancer

AWS documents Application Load Balancers as operating at the application layer and supporting features such as host- and path-based routing, while Network Load Balancers are designed for high-performance Layer 4 traffic. (docs.aws.amazon.com)

A simplified AWS architecture:

                    Internet
                       │
                       ▼
                  AWS Load Balancer
                       │
              ┌────────┼────────┐
              ▼        ▼        ▼
             EC2      EC2      EC2

AWS load balancing can integrate with autoscaling and multiple availability zones.

49. Azure Load Balancing

Microsoft Azure provides several traffic-distribution services for different network and application requirements.

Azure Load Balancer is primarily associated with Layer 4 traffic distribution, while Azure Application Gateway provides application-layer capabilities such as HTTP routing and TLS termination.

Microsoft’s documentation distinguishes these services according to their traffic and application-layer roles. (learn.microsoft.com)

Conceptually:

Internet
   │
   ▼
Azure Traffic Service
   │
   ▼
Application / VM Pool

For broader Azure architecture, compare it with AWS vs Azure vs Google Cloud.

50. Google Cloud Load Balancing

Google Cloud provides managed load-balancing services supporting different traffic patterns, including HTTP(S), TCP, SSL, and UDP workloads.

Google describes Cloud Load Balancing as a managed service capable of distributing traffic across backends and supporting global and regional architectures. (cloud.google.com)

A conceptual global architecture:

                     Users
                       │
                       ▼
              Global Load Balancer
                 /            \
                ▼              ▼
           Region A         Region B
              │                │
              ▼                ▼
           Backends          Backends

51. AWS vs Azure vs Google Cloud Load Balancing

The providers use different product names and implementation details.

Area	AWS	Azure	Google Cloud
L4 capabilities	Yes	Yes	Yes
L7 capabilities	Yes	Yes	Yes
Global options	Yes	Yes	Yes
Health checks	Yes	Yes	Yes
TLS termination	Yes	Yes	Yes
Autoscaling integration	Yes	Yes	Yes
Multiple traffic models	Yes	Yes	Yes

The table is intentionally architectural rather than product-specific because individual capabilities and limits vary by service and evolve over time.

For a broader provider comparison, see AWS vs Azure vs Google Cloud.

52. Load Balancing Architecture for a Production Web Application

A mature cloud architecture might look like:

                         Internet
                            │
                            ▼
                           DNS
                            │
                            ▼
                    Global Traffic Layer
                            │
                            ▼
                    Regional Load Balancer
                            │
             ┌──────────────┼──────────────┐
             ▼              ▼              ▼
          Zone A          Zone B          Zone C
             │              │              │
             ▼              ▼              ▼
          App 1           App 2           App 3
             │              │              │
             └──────────────┼──────────────┘
                            ▼
                         Cache
                            │
                            ▼
                       Cloud Database
                            │
                            ▼
                         Backups

Security surrounds the architecture:

                  Identity
                     │
          ┌──────────┼──────────┐
          ▼          ▼          ▼
        WAF       Firewall    TLS
          │          │          │
          └──────────┼──────────┘
                     ▼
               Load Balancer

This architecture supports:

horizontal scaling
high availability
controlled deployments
health-based routing
centralized ingress
observability
security controls

53. Cloud Load Balancing Best Practices

A production load-balancing strategy should follow several principles.

1. Design for failure

Assume individual instances will fail.

2. Use health checks

Do not route traffic blindly.

3. Prefer stateless applications

Where practical, avoid local session dependencies.

4. Monitor backend latency

Load balancing does not solve slow applications automatically.

5. Use graceful shutdown

Combine connection draining with application-level shutdown handling.

6. Secure backend communication

Do not assume internal traffic is automatically safe.

7. Test failover

A theoretical failover mechanism is not enough.

8. Integrate with autoscaling carefully

Ensure new instances become healthy before receiving production traffic.

9. Monitor costs

Global traffic distribution and cross-region architectures can increase network costs.

10. Document routing rules

Complex routing becomes difficult to troubleshoot without documentation.

54. Cloud Load Balancing Architecture Checklist

Before deployment:

Architecture
[ ] Backend pools defined
[ ] L4/L7 requirement identified
[ ] Scaling model defined
[ ] Availability zones considered
[ ] Regional strategy defined

Routing
[ ] Routing rules documented
[ ] Health checks configured
[ ] Timeouts reviewed
[ ] Connection draining configured
[ ] Session strategy defined

Security
[ ] TLS configured
[ ] Firewall rules reviewed
[ ] Backend access restricted
[ ] DDoS strategy evaluated
[ ] Logging enabled

Operations
[ ] Monitoring configured
[ ] Alerts configured
[ ] Failover tested
[ ] Deployment strategy tested
[ ] Capacity planning completed

55. Frequently Asked Questions

What is cloud load balancing?

Cloud load balancing distributes network or application traffic across multiple backend resources hosted in cloud infrastructure.

What is the difference between L4 and L7 load balancing?

L4 operates primarily at the transport layer using TCP/UDP information, while L7 can understand application-layer protocols such as HTTP and make routing decisions using paths, hosts, headers, and other request information.

Does a load balancer improve performance?

It can improve scalability and resource utilization, but it does not automatically make an inefficient application faster.

Does a load balancer provide high availability?

Load balancing can contribute to high availability by distributing traffic across multiple healthy resources, but the complete architecture must also address failure domains, application health, databases, networking, and recovery.

What is a health check?

A health check is a mechanism used to determine whether a backend resource should receive traffic.

What is session affinity?

Session affinity attempts to keep a client’s requests associated with the same backend resource.

Is session affinity always necessary?

No. Stateless applications can often distribute requests more freely and scale more easily.

What is TLS termination?

TLS termination means the load balancer handles the client’s encrypted TLS connection and then forwards traffic to the backend according to the configured architecture.

Can load balancers work with databases?

Some database architectures can use traffic-distribution mechanisms for read workloads, but database consistency, replication lag, and transaction requirements must be considered.

What is global load balancing?

Global load balancing distributes application traffic across geographically separated regions or locations according to policies such as latency, geography, capacity, or health.

Conclusion

Cloud load balancing is one of the fundamental building blocks of modern distributed infrastructure.

A load balancer can sit between users and application resources while providing:

traffic distribution
health checks
high availability
horizontal scalability
TLS termination
application routing
failover
deployment control
observability

But the load balancer itself is only one component.

A reliable cloud architecture connects:

DNS
 ↓
Traffic Management
 ↓
Load Balancer
 ↓
Application
 ↓
Cache
 ↓
Database
 ↓
Backup / Disaster Recovery

while security controls operate across the entire architecture.

The most important architectural decision is not simply choosing a load-balancer product. It is understanding the workload and selecting the appropriate combination of:

L4 or L7 routing
regional or global distribution
health checks
autoscaling
stateless application design
TLS
network security
observability
failover
disaster recovery

When these components are designed together, cloud load balancing becomes a foundation for scalable, resilient, and production-ready applications.
