Data Center Architecture Explained: Servers, Racks, Power, Cooling, Network Fabric and Tier Levels

Modern websites, cloud platforms, databases, artificial intelligence systems, business applications, and enterprise networks ultimately depend on physical infrastructure somewhere.

Even when an organization says that its infrastructure is “in the cloud,” the workloads still execute on physical servers located inside data centers.

A data center is therefore much more than a building filled with computers.

It is a carefully engineered environment that combines servers, storage, networking, racks, electrical power, UPS systems, generators, cooling, fire protection, physical security, monitoring, redundancy, and operational procedures into one infrastructure platform.

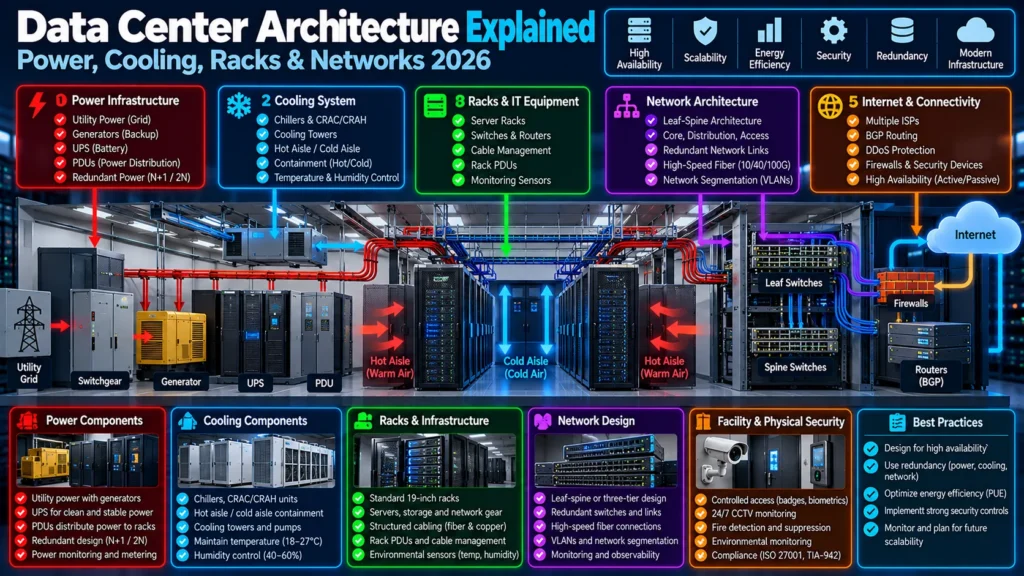

A simplified data center can be represented as:

Users
  │
  ▼
Internet
  │
  ▼
Network Edge
  │
  ▼
Core / Data Center Network
  │
  ├─────────────┬─────────────┐
  ▼             ▼             ▼
Servers       Storage      Services
  │             │             │
  └─────────────┴─────────────┘
                │
                ▼
       Power + Cooling
                │
                ▼
          Physical Facility

Understanding this architecture is essential because application availability depends on much more than the server running the application.

A perfectly configured server can still disappear if its rack loses power.

A redundant server cluster can still fail if every node depends on the same network switch.

A storage array can remain healthy while applications lose access because a network path fails.

And an entire IT platform can stop operating if cooling infrastructure cannot remove the heat generated by the equipment.

This guide explains how modern data centers are designed from the physical rack level to redundant power, cooling, networking, storage, and multi-site infrastructure.

For the server layer itself, start with CorgiNetwork’s Servers & Infrastructure Explained. If you need the networking foundation first, Computer Networking Explained covers the principles that connect data-center infrastructure.

What Is a Data Center?

A data center is a facility designed to house and operate computing infrastructure.

That infrastructure can include:

• Physical servers
• Storage systems
• Network switches
• Routers
• Firewalls
• Load balancers
• Backup systems
• Management platforms
• Power-distribution equipment
• UPS systems
• Cooling infrastructure
• Monitoring systems

At a high level:

              DATA CENTER

 ┌──────────────────────────────────────┐
 │                                      │
 │   Compute       Storage     Network  │
 │      │             │           │     │
 │      └─────────────┼───────────┘     │
 │                    │                 │
 │             Infrastructure           │
 │                    │                 │
 │       ┌────────────┴───────────┐     │
 │       ▼                        ▼     │
 │     Power                   Cooling  │
 │                                      │
 └──────────────────────────────────────┘

Every layer must operate reliably for the workloads above it to remain available.

This makes data-center architecture an exercise in identifying and eliminating single points of failure.

The Major Layers of Data Center Architecture

A useful way to understand a data center is to divide it into several layers:

Applications
     │
     ▼
Compute
     │
     ▼
Virtualization / Containers
     │
     ▼
Storage
     │
     ▼
Networking
     │
     ▼
Racks & Cabling
     │
     ▼
Power
     │
     ▼
Cooling
     │
     ▼
Facility

Each layer depends on the layers beneath it.

For example, virtualization depends on physical compute and storage. Physical servers depend on network connectivity, electricity, and cooling.

CorgiNetwork’s Virtualization Explained explores how physical compute resources can host multiple isolated virtual machines.

Data Center Compute Architecture

Compute is provided primarily by physical servers.

A server may contain:

CPU
RAM
NICs
Storage Controllers
Local SSD / NVMe
Power Supplies
Management Controller

Multiple servers are installed in racks:

Rack
│
├── Server 01
├── Server 02
├── Server 03
├── Server 04
├── Server 05
├── Network Switch
└── Power Distribution

Applications can run directly on these servers or through a virtualization layer.

Rack Servers

A rack server is designed to fit into a standardized equipment rack.

Server height is usually measured in rack units:

1U
2U
4U

One rack unit, commonly written as 1U, is approximately 1.75 inches or 44.45 millimeters high.

A simplified rack might look like:

42U ┌────────────────────────┐
    │ Network Switch         │
    ├────────────────────────┤
    │ Network Switch         │
    ├────────────────────────┤
    │ Server                 │
    ├────────────────────────┤
    │ Server                 │
    ├────────────────────────┤
    │ Server                 │
    ├────────────────────────┤
    │ Storage                │
    ├────────────────────────┤
    │ Server                 │
    ├────────────────────────┤
    │                        │
    │ Remaining Capacity     │
    │                        │
    └────────────────────────┘

Rack planning must consider more than physical space.

Engineers also need to consider:

Power Capacity
Cooling Capacity
Weight
Network Ports
Cable Management
Failure Domains
Maintenance Access

A rack can have physical space remaining while having insufficient power or cooling capacity for additional servers.

Rack Density

Rack density describes how much IT equipment—and often how much electrical load—is concentrated in a rack.

Traditional infrastructure might use relatively moderate rack power.

Modern GPU and AI systems can create dramatically higher power density.

As density increases:

Power Consumption ↑
Heat Generation ↑
Cooling Requirement ↑

This relationship is fundamental.

Almost all electrical power consumed by IT equipment eventually becomes heat that must be removed from the environment.

Server Redundancy

Production servers often contain redundant components.

For example:

Server
  │
  ├── PSU A
  └── PSU B

Each power supply should ideally connect to an independent power path.

Power Path A ─── PSU A
                   │
                 Server
                   │
Power Path B ─── PSU B

Connecting both power supplies to the same PDU does not provide complete power-path redundancy.

        PDU A
       /     \
    PSU A   PSU B
       \     /
        Server

If PDU A fails, both server power supplies become useless.

A stronger design is:

PDU A ─── PSU A
             │
           Server
             │
PDU B ─── PSU B

This principle appears repeatedly throughout data-center design:

Redundant components should not depend on the same underlying failure domain.

Data Center Storage

Servers need persistent storage for operating systems, virtual machines, databases, backups, logs, and application data.

Storage can be local:

Server
  │
  ▼
NVMe

or shared:

Server A ─┐
Server B ─┼──── Storage Network ─── Storage
Server C ─┘

Common models include:

DAS
NAS
SAN
Distributed Storage
Object Storage

Storage design also involves RAID, replication, snapshots, IOPS, throughput, latency, and backup architecture.

These subjects deserve their own detailed treatment because storage availability and data recoverability are not the same thing.

Data Center Networking

The network connects servers, storage, management systems, security appliances, external networks, and users.

A simplified topology looks like:

Internet
   │
   ▼
Edge Routers
   │
   ▼
Firewalls
   │
   ▼
Data Center Network
   │
   ├── Server Rack A
   ├── Server Rack B
   ├── Storage
   └── Management

Understanding the TCP/IP stack is essential here. CorgiNetwork’s TCP/IP Explained explains how IP addressing, transport protocols, routing, and network communication fit together.

Traditional Three-Tier Data Center Network

Historically, many data-center networks used a three-tier architecture:

            Core
           /    \
          /      \
   Aggregation  Aggregation
      /   \        /   \
     /     \      /     \
 Access  Access  Access  Access
   │       │       │       │
Servers Servers Servers Servers

The layers are commonly described as:

Core
Aggregation / Distribution
Access

This model can work well, but modern east-west traffic patterns have encouraged wider adoption of leaf-spine architectures.

What Is East-West Traffic?

Traditional application traffic often followed a north-south model:

Internet
   │
   ▼
Server

Modern distributed applications communicate extensively between internal systems:

Application Server
       │
       ▼
Database
       │
       ▼
Cache
       │
       ▼
Message Queue

This server-to-server or service-to-service communication is often described as east-west traffic.

Large virtualization, container, microservice, and distributed-storage environments can generate enormous amounts of east-west traffic.

Leaf-Spine Architecture

A modern data-center network frequently uses a leaf-spine topology.

        Spine 1          Spine 2
        / |  \            / |  \
       /  |   \          /  |   \
      /   |    \        /   |    \
 Leaf 1 Leaf 2 Leaf 3 Leaf 4
   │      │      │      │
Servers Servers Servers Servers

Each leaf switch connects to every spine switch.

Servers usually connect to leaf switches.

The design provides predictable paths between racks.

For example:

Server A
   │
   ▼
Leaf 1
   │
   ▼
Spine
   │
   ▼
Leaf 4
   │
   ▼
Server B

This architecture scales horizontally by adding additional leaf capacity and, within design limits, spine capacity.

Top-of-Rack Switches

Many data centers install switches inside or near each rack.

Rack
│
├── Top-of-Rack Switch A
├── Top-of-Rack Switch B
├── Server 1
├── Server 2
├── Server 3
└── Server 4

Servers can connect redundantly:

             ┌── Switch A
Server ──────┤
             └── Switch B

This provides network-path redundancy when correctly configured.

However, redundancy must extend beyond the first switch.

If both switches ultimately depend on one upstream device, the upstream device becomes the new single point of failure.

Network Redundancy

A stronger network design can look like:

              ISP A             ISP B
                │                 │
                ▼                 ▼
             Router A          Router B
                │                 │
                └──────┬──────────┘
                       ▼
                  Firewall Pair
                       │
                ┌──────┴──────┐
                ▼             ▼
             Spine A       Spine B
                │             │
             ┌──┴─────────────┴──┐
             ▼                   ▼
          Leaf A               Leaf B
             │                   │
             └────── Servers ────┘

The goal is not merely to duplicate hardware.

The goal is to remove common failure dependencies.

For the security layer of this architecture, CorgiNetwork’s Firewalls Explained provides a detailed introduction to firewall operation and network segmentation.

Data Center Cabling

Cabling is another critical infrastructure layer.

Data centers can contain thousands of:

Copper Ethernet Cables
Fiber-Optic Cables
Storage Cables
Management Cables
Power Cables

Poor cable management can create operational problems during maintenance and troubleshooting.

Structured cabling should make it possible to determine:

Where does this cable start?
Where does it end?
Which system depends on it?
Can it be safely disconnected?

Labeling and documentation are therefore operational reliability mechanisms, not cosmetic details.

Out-of-Band Management

Servers and network devices often include dedicated management interfaces.

These can provide remote access even when the normal operating system is unavailable.

Conceptually:

Production Network
      │
      ▼
   Server OS

Management Network
      │
      ▼
BMC / Management Controller

Administrators can potentially use this management layer to inspect hardware status, access remote consoles, reboot systems, or troubleshoot boot problems.

Because management interfaces are extremely powerful, they should be strongly isolated and secured.

They should not simply be exposed directly to the public Internet.

Data Center Power Architecture

Without reliable electrical power, every other layer becomes irrelevant.

A simplified power chain might be:

Utility Grid
     │
     ▼
Electrical Switchgear
     │
     ▼
UPS
     │
     ▼
PDU
     │
     ▼
Rack PDU
     │
     ▼
Server

Backup generation can provide an additional source when utility power fails:

Utility ───────────────┐
                       ▼
                  Power System
                       ▲
Generator ─────────────┘
                       │
                       ▼
                      UPS
                       │
                       ▼
                  IT Equipment

Each component has a different role.

What Is a UPS?

UPS means Uninterruptible Power Supply.

Its purpose is to provide immediate electrical continuity when the upstream supply is interrupted or unstable.

Conceptually:

Utility Power
     │
     ▼
UPS
     │
     ▼
Servers

If utility power disappears:

Utility ✗
    │
    ▼
UPS Battery
    │
    ▼
Servers Continue

A UPS is usually not intended to run an entire data center indefinitely.

Instead, it bridges the transition while another power source—often a generator—becomes available, or provides enough time for controlled shutdown depending on facility design.

Backup Generators

Generators can provide longer-duration electrical power during utility outages.

A simplified failure sequence is:

Utility Power Failure
        │
        ▼
UPS Immediately Supports Load
        │
        ▼
Generator Starts
        │
        ▼
Generator Stabilizes
        │
        ▼
Facility Transfers Load

This requires coordination among batteries, generators, switching equipment, fuel systems, and operational procedures.

The Uptime Institute’s Tier framework explicitly considers power infrastructure as part of data-center topology and resilience.

What Is a PDU?

PDU means Power Distribution Unit.

PDUs distribute electrical power toward equipment.

At rack level:

Power Feed
    │
    ▼
Rack PDU
    │
    ├── Server 1
    ├── Server 2
    ├── Server 3
    ├── Switch A
    └── Switch B

Advanced rack PDUs may also provide power metering and environmental or outlet-level monitoring.

Capacity planning is essential because installing additional servers without considering the electrical load can overload the power path even when physical rack space remains.

A-Side and B-Side Power

Highly available infrastructure often uses two power paths.

         Power A             Power B
            │                   │
            ▼                   ▼
          PDU A               PDU B
            │                   │
            ▼                   ▼
          PSU A               PSU B
             \                 /
              \               /
                 Server

The objective is to allow one path to fail or undergo maintenance while the other continues supporting the equipment.

The concept can extend through multiple layers of the electrical architecture.

Power Redundancy: N, N+1 and 2N

Redundancy is often described using capacity models.

If the infrastructure needs four units of capacity to operate:

Required Capacity = 4

An N design provides exactly four:

N = 4

There is no spare capacity.

An N+1 design provides:

4 Required + 1 Redundant

so one capacity component can potentially become unavailable while required capacity remains.

A 2N design provides two complete sets of required capacity:

System A = Full Capacity
System B = Full Capacity

These are architectural concepts rather than automatic guarantees of uptime. Dependencies, distribution paths, maintenance procedures, and actual implementation still matter.

Data Center Cooling

Servers convert electrical energy into heat.

Without sufficient cooling:

Server Load ↑
      │
      ▼
Heat Output ↑
      │
      ▼
Temperature ↑
      │
      ▼
Hardware Risk ↑

Cooling systems remove this heat and maintain environmental conditions suitable for IT equipment.

Why Airflow Matters

Many rack servers are designed for front-to-back airflow.

Cool Air
   │
   ▼
[ SERVER ]
   │
   ▼
Hot Air

If hot exhaust mixes with server intake air, equipment may ingest increasingly warm air.

Data-center layouts therefore attempt to separate cold supply air from hot exhaust air.

Hot-Aisle / Cold-Aisle Design

A common layout alternates equipment orientation:

       COLD AISLE
           ↓
 ┌───────────────┐
 │ Rack →        │
 │ Rack →        │
 └───────────────┘

        HOT AISLE

 ┌───────────────┐
 │        ← Rack │
 │        ← Rack │
 └───────────────┘
           ↑
       COLD AISLE

Server fronts face the cold aisle.

Server exhausts face the hot aisle.

This helps reduce uncontrolled mixing between hot and cold air.

Aisle Containment

More advanced facilities may physically contain one airflow region.

For example, hot-aisle containment:

Cold Room Air
      │
      ▼
Server Intake
      │
      ▼
   Servers
      │
      ▼
Contained Hot Aisle
      │
      ▼
Cooling System

The objective is to make thermal management more predictable and efficient.

Air Cooling vs Liquid Cooling

Traditional data centers rely heavily on air cooling.

However, increasingly dense compute platforms—particularly high-performance and AI infrastructure—can require more advanced thermal designs.

Liquid-cooling approaches can move heat closer to the source.

Conceptually:

CPU / GPU
    │
    ▼
Cold Plate
    │
    ▼
Cooling Liquid
    │
    ▼
Heat Exchanger

Liquid cooling does not eliminate facility-level thermal engineering; it changes how heat is transported from IT equipment to the broader cooling infrastructure.

Environmental Monitoring

Data centers should monitor conditions such as:

Temperature
Humidity
Water Leakage
Airflow
Power
Smoke
Equipment Health

Sensors can be installed throughout racks, aisles, rooms, and mechanical infrastructure.

Monitoring should identify deteriorating conditions before they become service outages.

Fire Detection and Suppression

Fire represents a severe threat because it can simultaneously affect power, networking, compute, and storage.

Data centers therefore use fire detection and suppression strategies appropriate to the facility and local regulations.

Design objectives include:

Detect Early
Protect People
Limit Fire Spread
Protect Critical Infrastructure
Minimize Secondary Damage

Fire safety is a specialized engineering discipline and must comply with applicable local codes and safety standards.

Physical Security

Cybersecurity cannot compensate for uncontrolled physical access.

A secure facility can use several security layers:

Site Perimeter
      │
      ▼
Building Access
      │
      ▼
Security Check
      │
      ▼
Data Hall Access
      │
      ▼
Rack Access

Controls may include identity verification, access badges, surveillance, visitor procedures, logging, restricted zones, and locked racks.

Physical access should follow the same principle used in cybersecurity:

Grant only the access required for the job.

CorgiNetwork’s Network Security Basics explains how this least-privilege mindset also applies to digital infrastructure.

Data Center Failure Domains

A failure domain is a group of systems that can be affected by the same failure.

Examples include:

Single Disk
Single Server
Single Rack
Single PDU
Single Switch
Single UPS
Single Cooling Unit
Single Room
Single Building
Single Data Center
Single Geographic Region

High availability depends on placing redundant systems across the correct failure domains.

Consider two application servers:

Rack A
├── Server 1
└── Server 2

You have two servers.

But a rack-level power or network failure can remove both.

A stronger design might be:

Rack A              Rack B
  │                   │
Server 1            Server 2

If the required failure domain is larger, even different racks may not be enough.

Redundancy Must Cross the Failure Domain

Suppose:

Server A
Server B
Server C

all use:

Switch A

Then:

Switch A = Single Point of Failure

Add Switch B:

Server A ── Switch A + Switch B
Server B ── Switch A + Switch B
Server C ── Switch A + Switch B

But if both switches use one upstream router:

Router A = Single Point of Failure

High availability therefore requires continuously asking:

What common dependency can still take everything down?

Data Center High Availability

A highly available application might span several infrastructure domains:

                    Load Balancer
                         │
               ┌─────────┴─────────┐
               ▼                   ▼
             Rack A              Rack B
               │                   │
           App Server          App Server
               │                   │
               └─────────┬─────────┘
                         ▼
                  Redundant Storage
                         │
                    Replication

But infrastructure redundancy alone does not guarantee application availability.

The application must also tolerate failures.

This is why infrastructure architecture, application architecture, and operational procedures must be designed together.

Data Center Tier Classification

One of the best-known frameworks for describing data-center infrastructure resilience is the Uptime Institute Tier Classification System.

The official Uptime Institute framework defines four progressive classifications:

Tier I
Tier II
Tier III
Tier IV

The classifications address facility infrastructure characteristics involving power, cooling, maintenance, redundancy, and fault capabilities. Importantly, Uptime Institute emphasizes that the tiers correspond to different business requirements rather than simply meaning that every organization should aim for the highest number.

The authoritative reference is the Uptime Institute Tier Classification System.

Tier I — Basic Capacity

Tier I represents basic site infrastructure capacity.

According to Uptime Institute, Tier I includes essential infrastructure such as UPS capability, dedicated cooling, IT space, and engine generation, but maintenance or infrastructure problems can require shutdowns.

Conceptually:

Utility
   │
   ▼
Power Infrastructure
   │
   ▼
IT Equipment

There is limited infrastructure redundancy compared with higher classifications.

Tier II — Redundant Capacity Components

Tier II adds redundant capacity components.

Conceptually:

Required Component
       +
Redundant Capacity Component

This improves resilience compared with basic capacity.

However, Uptime Institute notes that site-wide shutdowns can still be required for maintenance and that distribution-path failures can still affect the site.

Tier III — Concurrently Maintainable

Tier III introduces the important concept of concurrent maintainability.

Uptime Institute describes Tier III so that each capacity component and distribution path can be removed on a planned basis for maintenance or replacement without affecting IT operations.

Conceptually:

Path A ──────────┐
                 ├── IT Load
Path B ──────────┘

Planned maintenance can occur without necessarily shutting down the production IT environment.

This is a major architectural step beyond simply installing spare equipment.

Tier IV — Fault Tolerance

Tier IV adds stronger fault-tolerance requirements to the infrastructure topology.

The objective is for the site infrastructure to tolerate specified individual equipment failures or distribution interruptions without disrupting IT operations.

Tier IV architecture is therefore considerably more complex and expensive than lower-tier designs.

This is why the question should not be:

What is the highest Tier?

The better question is:

What level of infrastructure resilience does the business actually require?

The official Uptime Institute Tier Certification overview provides the authoritative distinction among these classifications.

Tier Certification Is Not Just a Marketing Label

It is important not to label an ordinary data center “Tier III” simply because it appears to have redundant equipment.

Uptime Institute distinguishes between the Tier Standard itself and formal Tier Certification, which verifies whether a facility satisfies the relevant requirements.

Certification can address design documents, constructed facilities, and operational sustainability.

Therefore:

"We designed something similar to Tier III"

is not equivalent to:

"Uptime Institute Tier III Certified"

This distinction matters when evaluating hosting providers and colocation facilities.

Data Center vs Availability Zone

Cloud architecture introduces another important concept: the Availability Zone.

An Availability Zone is not simply another name for a single server room.

For example, AWS describes an Availability Zone as one or more discrete data centers with separate and redundant power infrastructure, networking, and connectivity within an AWS Region.

A simplified cloud architecture is:

AWS Region
   │
   ├── Availability Zone A
   │      └── Data Center Infrastructure
   │
   ├── Availability Zone B
   │      └── Data Center Infrastructure
   │
   └── Availability Zone C
          └── Data Center Infrastructure

AWS states that each Region has at least three Availability Zones, allowing customers to design highly available applications across isolated locations.

The official AWS Availability Zones documentation explains the current model.

Why Multi-AZ Architecture Matters

Suppose an application runs entirely in:

Availability Zone A

Even if it contains:

10 Servers
2 Load Balancers
3 Database Nodes

all of them still depend on one availability zone.

A stronger architecture distributes workloads:

                 Load Balancer
                       │
             ┌─────────┴─────────┐
             ▼                   ▼
           AZ A                 AZ B
             │                   │
        App Servers         App Servers
             │                   │
             └─────────┬─────────┘
                       ▼
                Replicated Data

This protects against a larger failure domain.

For the broader relationship between cloud regions and availability zones, see CorgiNetwork’s Cloud Computing Explained and AWS vs Azure vs Google Cloud.

Multi-Data-Center Architecture

Organizations requiring protection from complete site failure may operate across multiple facilities.

                 Global Traffic Layer
                         │
              ┌──────────┴──────────┐
              ▼                     ▼
        Data Center A          Data Center B
              │                     │
        App + Storage          App + Storage
              │                     │
              └──── Replication ────┘

The facilities can operate as:

Active-Passive

or:

Active-Active

depending on application and data architecture.

Active-Passive Data Centers

In active-passive architecture:

Data Center A
ACTIVE
   │
   │ Replication
   ▼
Data Center B
STANDBY

Normal traffic uses Site A.

If Site A fails, workloads or traffic are moved to Site B.

Advantages can include lower complexity than full active-active operation.

The major challenge is ensuring that the standby environment is actually capable of taking over.

A disaster-recovery site that has never been tested may fail when it is finally needed.

Active-Active Data Centers

In active-active architecture:

             Users
               │
       ┌───────┴───────┐
       ▼               ▼
 Data Center A     Data Center B
     ACTIVE            ACTIVE

Both facilities serve production traffic.

This can improve geographic resilience and distribute workload, but it creates additional complexity around:

Traffic Routing
Database Consistency
Session State
Replication
Conflict Resolution
Latency
Failure Detection

Active-active infrastructure should therefore be treated as a distributed-systems architecture, not simply as “two data centers.”

Data Center and DNS

DNS frequently participates in multi-site traffic routing.

Conceptually:

User
 │
 ▼
DNS
 │
 ├── Data Center A
 └── Data Center B

DNS-based routing can help direct clients toward healthy or geographically appropriate infrastructure.

However, DNS responses can be cached, so DNS failover should not be assumed to be instantaneous.

For the complete protocol foundation, see DNS Explained.

Load Balancing Inside the Data Center

Applications commonly run across multiple servers.

Users
  │
  ▼
Load Balancer
  │
  ├── Server A
  ├── Server B
  └── Server C

Load balancing distributes requests and can remove unhealthy servers from rotation.

But the load balancer itself must not become a single point of failure.

Production environments can use redundant appliances, clustering, anycast, or managed load-balancing services depending on the architecture.

Virtualization in the Data Center

Virtualization decouples applications from individual physical servers.

Physical Server
      │
      ▼
   Hypervisor
      │
  ┌───┼───┐
  ▼   ▼   ▼
 VM1 VM2 VM3

A virtualization cluster can pool multiple physical servers:

Host A ─┐
Host B ─┼── Virtualization Cluster
Host C ─┘

Combined with appropriate shared or distributed storage, this can allow workloads to restart or move when physical hosts require maintenance or fail.

See Virtualization Explained for the complete architecture.

Data Center Monitoring

A data center should be monitored as an integrated system.

Monitoring only server CPU usage is insufficient.

A useful monitoring architecture covers:

Applications
Servers
Virtual Machines
Storage
Network
Power
Cooling
Environmental Sensors
Physical Security

Important infrastructure metrics can include:

Area	Example Metrics
Servers	CPU, RAM, hardware health
Storage	IOPS, latency, capacity, errors
Network	bandwidth, packet loss, errors
Power	voltage, load, UPS state
Cooling	temperature, humidity, airflow
Facility	water, smoke, access events

Infrastructure teams should correlate these signals.

For example:

Application Latency ↑
        │
        ▼
Server Temperature ↑
        │
        ▼
CPU Throttling
        │
        ▼
Cooling Problem

The apparent application-performance issue may actually originate in the physical environment.

DCIM Explained

Large facilities may use Data Center Infrastructure Management, or DCIM, systems.

A DCIM platform can help track information such as:

Rack Space
Power Usage
Cooling
Environmental Conditions
Assets
Cabling
Capacity

This provides infrastructure teams with a more complete view of the relationship between IT hardware and facility resources.

Capacity Planning

Data-center capacity planning must consider several dimensions simultaneously.

Suppose a rack has space for:

42U

and only 20U is currently occupied.

It may appear to have 22U available.

But imagine the rack is already near its:

Power Limit

or:

Cooling Limit

Then physical space is no longer the limiting resource.

Real capacity is therefore constrained by whichever critical resource reaches its limit first:

Rack Space
Power
Cooling
Network Ports
Weight
Storage

Data Center Efficiency and PUE

One commonly used facility metric is Power Usage Effectiveness (PUE).

Conceptually:

PUE =
Total Facility Energy
─────────────────────
IT Equipment Energy

If a facility consumes:

2 MW total

while IT equipment consumes:

1.5 MW

then:

PUE ≈ 1.33

A value closer to 1 indicates that a greater share of facility energy is reaching IT equipment rather than supporting overhead such as cooling and electrical infrastructure.

PUE is useful, but it should not be treated as a complete measure of data-center quality, sustainability, or application efficiency.

Maintenance Without Downtime

One of the central goals of resilient data-center architecture is allowing infrastructure to be maintained without stopping production.

For example:

Normal Operation

Power A ────┐
            ├── IT Load
Power B ────┘

During maintenance:

Power A ─── Maintenance
Power B ───────────── IT Load

Similar concepts apply to:

Network Paths
Cooling Units
UPS Modules
Generators
Storage Controllers
Servers

This is why redundancy is valuable even when hardware rarely fails.

It enables maintenance.

Planned Failure vs Unplanned Failure

Infrastructure must handle both.

A planned event might be:

Replace UPS Module
Upgrade Network Switch
Service Cooling Unit
Patch Hypervisor

An unplanned event might be:

Power Supply Failure
Switch Failure
Disk Failure
Cooling Failure
Utility Outage
Fiber Cut

A good architecture considers both categories.

The Importance of Operational Procedures

Redundant hardware cannot compensate for every operational mistake.

Imagine:

Network Switch A
Network Switch B

providing redundancy.

During maintenance, an engineer accidentally shuts down both.

Hardware redundancy existed.

Operational redundancy did not.

Uptime Institute explicitly treats operational sustainability as an important component of long-term data-center performance, emphasizing management, maintenance, staffing, and operational practices alongside physical topology.

This is why mature environments rely on:

Change Management
Maintenance Procedures
Peer Review
Documentation
Access Control
Testing
Rollback Plans
Incident Response

Common Data Center Design Mistakes

One of the most common mistakes is fake redundancy.

For example:

Server
├── PSU A
└── PSU B

looks redundant.

But:

PSU A ─┐
       ├── PDU A
PSU B ─┘

still has one PDU failure domain.

Another mistake is putting every cluster node in one rack.

Rack A
├── Cluster Node 1
├── Cluster Node 2
└── Cluster Node 3

A rack-level outage can remove the entire cluster.

Another common problem is redundant networking with a shared upstream dependency:

Switch A ─┐
          ├── Router A
Switch B ─┘

Router A remains a single point of failure.

The lesson is consistent:

Count failure domains, not devices.

Data Center Security Architecture

Security should exist at multiple layers.

Internet
   │
   ▼
Edge Security
   │
   ▼
Firewalls
   │
   ▼
Network Segmentation
   │
   ▼
Servers
   │
   ▼
Applications

At the same time:

Physical Perimeter
      │
      ▼
Building Security
      │
      ▼
Data Hall Security
      │
      ▼
Rack Security

Cybersecurity and physical security therefore intersect.

A compromised management interface or unauthorized physical connection can bypass protections elsewhere.

For related security concepts, continue with Network Security Basics, Firewalls Explained, and Intrusion Detection and Prevention Systems.

Designing a Highly Available Data Center Architecture

A simplified production design might look like this:

                         INTERNET
                             │
                  ┌──────────┴──────────┐
                  ▼                     ▼
               ISP A                  ISP B
                  │                     │
                  ▼                     ▼
              Router A              Router B
                  │                     │
                  └─────────┬───────────┘
                            ▼
                     Firewall Cluster
                            │
                ┌───────────┴───────────┐
                ▼                       ▼
             Spine A                 Spine B
                │                       │
         ┌──────┴──────┐         ┌──────┴──────┐
         ▼             ▼         ▼             ▼
      Leaf A         Leaf B   Leaf C         Leaf D
         │             │         │             │
         ▼             ▼         ▼             ▼
      Rack A         Rack B    Rack C         Rack D
         │             │         │             │
      Servers       Servers   Servers        Storage

Power can independently use:

Utility Feed
     │
     ▼
Switchgear
     │
 ┌───┴───────────┐
 ▼               ▼
UPS A           UPS B
 │               │
 ▼               ▼
PDU A           PDU B
 │               │
 └───────┬───────┘
         ▼
 Dual-PSU Servers

Cooling can similarly contain redundant capacity.

The objective is to prevent one component failure from becoming a service-wide outage.

From One Data Center to Cloud Architecture

Traditional infrastructure might use:

One Facility
     │
     ▼
Server Cluster

Modern cloud architecture can distribute workloads:

Region
 │
 ├── AZ A
 │    ├── Compute
 │    ├── Network
 │    └── Storage
 │
 ├── AZ B
 │    ├── Compute
 │    ├── Network
 │    └── Storage
 │
 └── AZ C
      ├── Compute
      ├── Network
      └── Storage

AWS explicitly describes Availability Zones as isolated locations within Regions and recommends their use when designing highly available applications.

This illustrates an important architectural evolution:

High availability is increasingly achieved by distributing applications across independent infrastructure failure domains rather than attempting to make one physical system impossible to fail.

Data Center Architecture Checklist

Before calling a data-center design resilient, review the architecture across all major failure domains.

Area	Key Question
Compute	Can one server fail without losing the service?
Rack	Can one rack fail without losing the application?
Network	Are there independent network paths?
Internet	Are external connectivity dependencies redundant?
Storage	Can storage survive component failures?
Power	Are critical devices connected to independent power paths?
UPS	Is sufficient redundancy and runtime available?
Generator	Can the facility survive prolonged utility interruption?
Cooling	Can cooling continue after a component failure?
Monitoring	Will failures be detected before redundancy is exhausted?
Security	Are physical and management interfaces protected?
Backup	Can deleted or corrupted data be recovered?
Disaster Recovery	Can operations continue after complete site failure?
Maintenance	Can critical components be serviced safely?
Documentation	Are dependencies and procedures documented?

The key question throughout the table is the same:

What single failure can still stop the service?

Frequently Asked Questions

What is a data center?

A data center is a facility designed to house and operate computing, networking, storage, power, cooling, and supporting infrastructure for digital services.

What equipment is inside a data center?

Typical equipment includes servers, storage systems, network switches, routers, firewalls, racks, PDUs, UPS systems, environmental sensors, cooling infrastructure, and management systems.

What is a server rack?

A server rack is a standardized physical structure used to mount servers, switches, storage equipment, and other infrastructure devices.

What does 1U mean?

1U is one rack unit and is approximately 1.75 inches, or 44.45 millimeters, high.

What is a PDU?

A Power Distribution Unit distributes electrical power to equipment, including servers and networking devices.

What is a UPS?

An Uninterruptible Power Supply provides immediate temporary electrical continuity when the primary power source fails or becomes unstable.

Why do data centers need generators?

Generators provide longer-duration backup power during utility failures after the UPS handles the immediate transition.

Why do servers have two power supplies?

Dual power supplies can allow a server to use redundant power paths, provided each PSU is connected to appropriately independent infrastructure.

What is a cold aisle?

A cold aisle supplies cooler intake air to the front of servers.

What is a hot aisle?

A hot aisle receives heated exhaust air from server equipment.

What is leaf-spine architecture?

Leaf-spine is a data-center network topology where leaf switches connect servers and every leaf connects to the spine layer, providing scalable and predictable connectivity.

What is a failure domain?

A failure domain is a set of systems that can be affected by the same underlying failure, such as one rack, switch, power system, availability zone, or data center.

What is Tier I?

Tier I is the Uptime Institute’s basic capacity classification for data-center site infrastructure.

What is Tier II?

Tier II adds redundant capacity components but can still require site-wide shutdowns for some maintenance activities.

What is Tier III?

Tier III is designed around concurrent maintainability, allowing capacity components and distribution paths to be removed on a planned basis without disrupting IT operations.

What is Tier IV?

Tier IV adds fault-tolerance requirements beyond Tier III’s concurrent maintainability model.

Does Tier IV mean every company should use Tier IV?

No. Uptime Institute explicitly frames the classifications around different business requirements. Higher infrastructure resilience also introduces additional cost and complexity.

What is the difference between a data center and an Availability Zone?

A data center is a physical facility. An Availability Zone is a cloud infrastructure failure-isolation concept that can consist of one or more discrete data centers. AWS, for example, describes its Availability Zones as having separate and redundant power, networking, and connectivity infrastructure.

Is having two servers enough for high availability?

Not necessarily. If both servers depend on the same rack, switch, PDU, storage system, or other single component, that shared dependency can still cause an outage.

Can a data center operate without cooling?

Not for sustained production operation. IT equipment generates heat continuously, so adequate thermal management is a fundamental facility requirement.

Does redundant hardware guarantee uptime?

No. Availability also depends on architecture, software, dependencies, monitoring, maintenance, operational procedures, and failure-domain separation.

Conclusion

A data center is not simply:

A Room
   +
Servers

It is a complete infrastructure ecosystem:

Compute
   +
Storage
   +
Networking
   +
Power
   +
Cooling
   +
Security
   +
Monitoring
   +
Operations

Every layer must be designed around failure.

A server can fail.

A disk can fail.

A switch can fail.

A PDU can fail.

A UPS can fail.

A cooling unit can fail.

A fiber connection can fail.

An entire rack can fail.

An entire facility can become unavailable.

Reliable infrastructure therefore depends on understanding failure domains and ensuring that critical redundant components do not share the same hidden dependency.

The architecture evolves from:

Single Server

to:

Redundant Servers

then:

Multiple Racks

then:

Redundant Network + Power + Storage

then:

Multiple Failure Domains

and ultimately:

Data Center A
      +
Data Center B

or in cloud environments:

Availability Zone A
        +
Availability Zone B
        +
Availability Zone C

This is the central principle of modern infrastructure architecture:

High availability is not achieved by making components impossible to fail. It is achieved by designing the service to continue operating when components inevitably fail.

Once the physical data-center layer is understood, the relationship between CorgiNetwork’s Servers & Infrastructure Explained, Computer Networking Explained, Virtualization Explained, Cloud Networking Explained, Cloud Computing Explained, DNS Explained, TCP/IP Explained, and Network Security Basics becomes much clearer.

Together, they form the complete infrastructure stack:

Physical Data Center
        │
        ▼
Servers + Storage
        │
        ▼
Networking
        │
        ▼
Virtualization
        │
        ▼
Operating Systems
        │
        ▼
Cloud / Platforms
        │
        ▼
Applications

Mastering data-center architecture means understanding not only how each of these components works, but also what happens to the entire system when one of them stops working.
